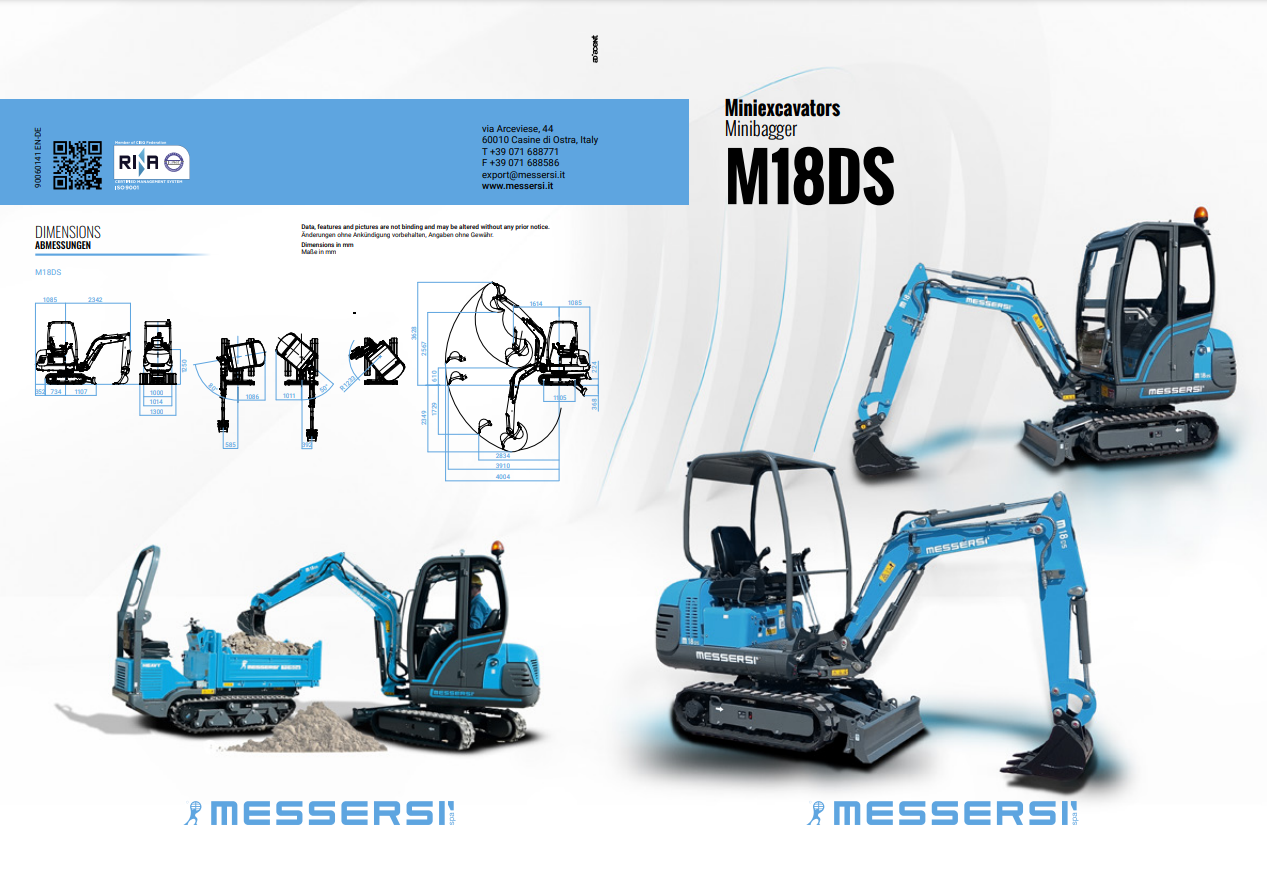

MINI EXCAVATOR M18DS UP TO 2360MM DIGGING DEPTH

Mini excavators M18DS
Compact dimensions
Power and performance
Maximum precision

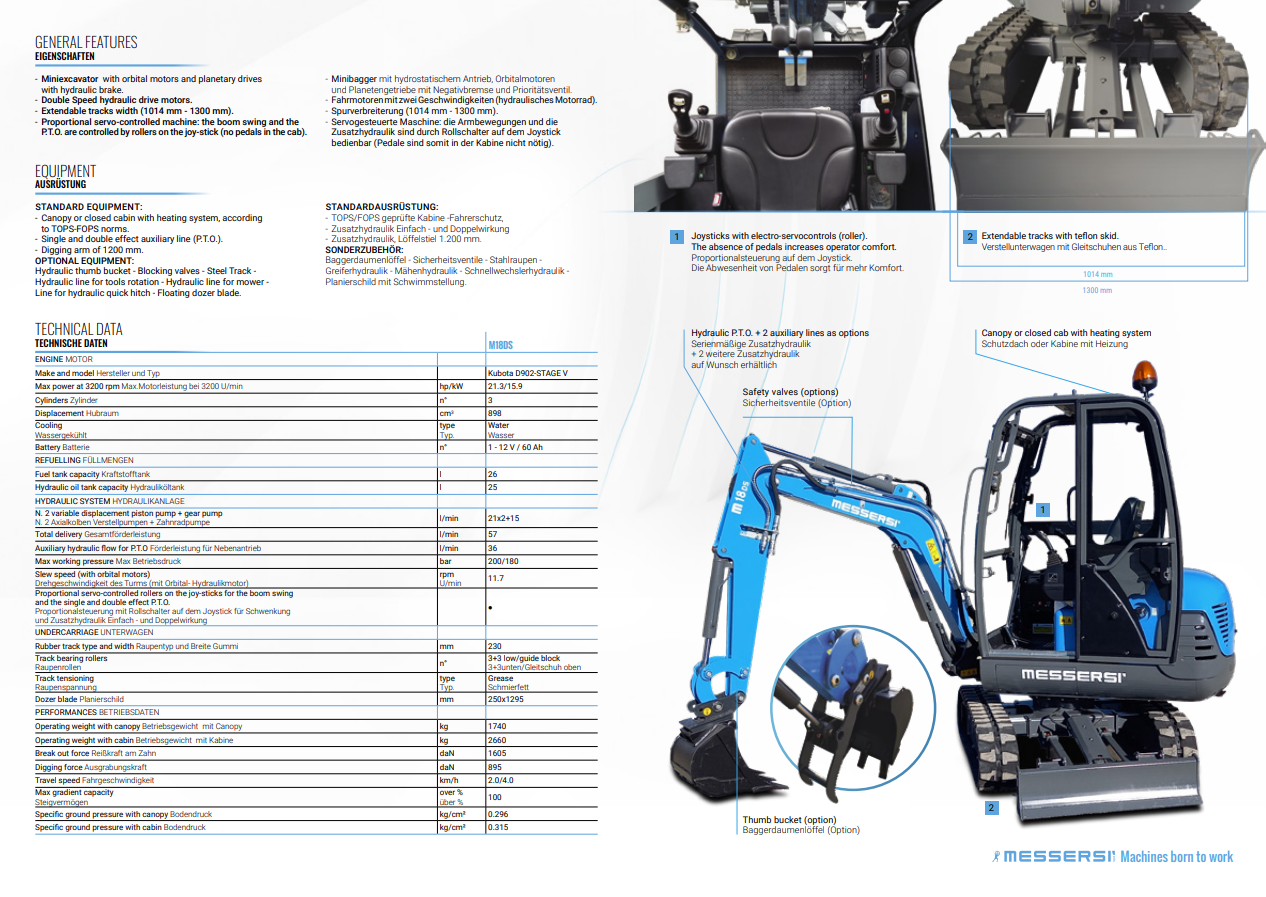

General Features

• Machine with hydrostatic transmission with Double Speed orbital motors and planetary drives with negative control brakes. Travel counter – balance valves.
• Proportional serv-controlled rollers on the joy-sticks for the boom swing and the single and double effect P.T.O. : greater maneuverability and improved operator comfort given by the absence of pedals in the cabin.
• Engine complies to the norm STAGE V, relevant to the polluting emissions.
• Original design with reduced overall dimensions with a total bonnet engine protection.
• The sprung and adjustable seat ensures the control of the machine in full security and comfort.
• The bonnet, with a wide opening and the hinged lateral ballasts, priveds full access for an easy servicing.
• The machine can be equipped with a spacious and comfortable cab (optional) with heating system. The cab is in accordance with TOPS antirolling and FOPS antifalling objects Norms.
• Lock of all the pilot assisted controls and of the levers when the armrest is lifted, thus excluding the danger of any undesired and uncontrolled mouvement caused by the accidental push of the control levers and pedals, when getting on and off the machine.
• Extraordinary manoeuvrability due to the employment, on all functions, of pilot assisted controls (lifting, excavation, bucket and torret rotation).

Standard equipment

• Canopy (FOPS, TOPS Norms)
• Fully servocontrolled commands
• Second travelling speed to be electrically selected
• Straight travel circuit electrically engaged
• Digging arm of mm 1.200
• Extendible undercarriage

USE & MAINTENANCE and SPARE PARTS MANUALS

Options

• Bucket of mm 250, 300, 350, 400, 450, 500, standard, for rocks and for Quick Hitches; bucket for slopes fixed or orientable; slopes cleaning buckets; mechanical or hydraulic quick hitch
• Hydraulic breaker
• Hydraulic manual breaker
• Grass-bush cutter
• Hydraulic drill
• Closed cab with heating system (FOPS TOPS norms)
• Steel trucks
• More auxiliary hrydraulic lines

*Data, features and illustration are not binding and may be altered without any notice.

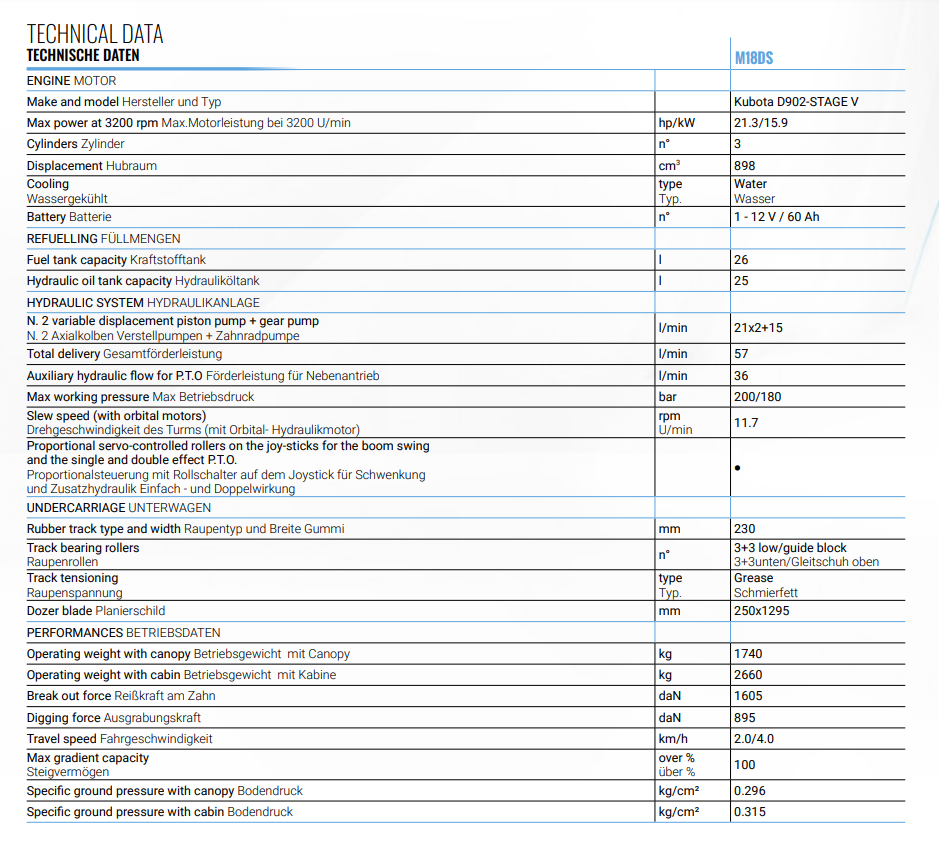

Weight

1740/1850kg

Engine power

STAGE V

15.9kW

Digging depth

2360mm

Type

Standard

Extendible tracks
