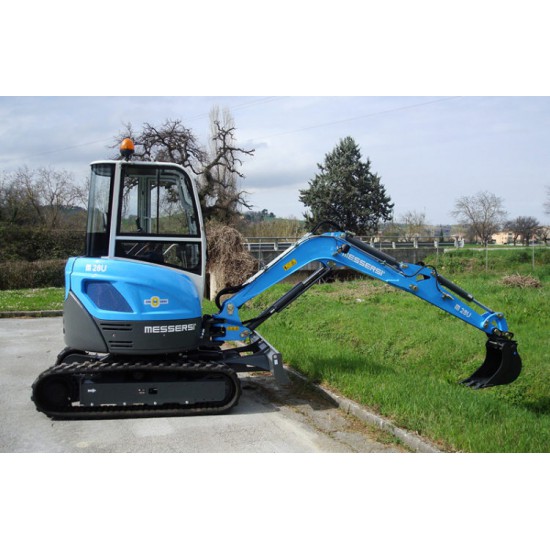

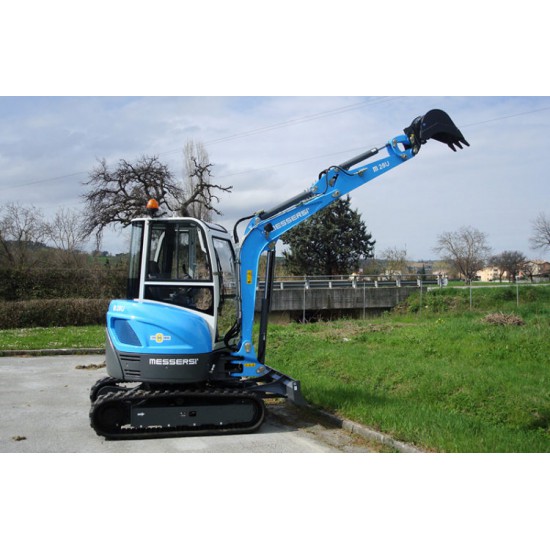

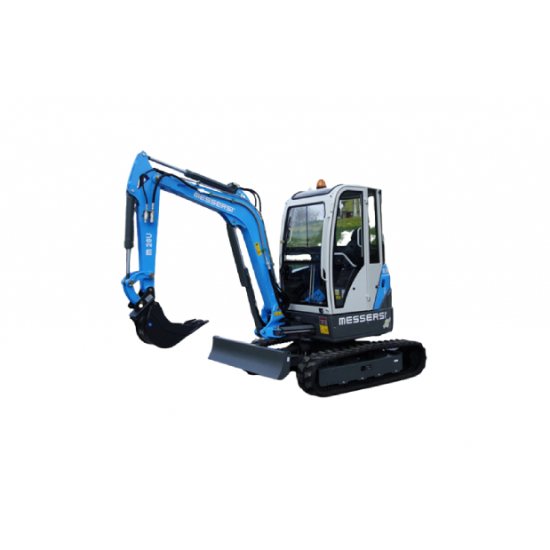

MINI EXCAVATOR M28U UP TO 2820MM DIGGING DEPTH

MINI-EXCAVATORS M28U
COMPACT DIMENSIONS
POWER AND PERFORMANCE
MAXIMUM PRECISION

General Features

• Hydraulic miniexcavator with the tail always remaining within the width of the tracks (Zero Tail Swing).
• STAGE V engine.
• Fully servo-controlled machine: the boom swing and the P.T.O. are controlled by rollers on the joy-stick (no pedals in the cab).
• Travel levers and servo-controls disabling system by armrest lifting prevents accidents due to unexpected machine movement during entry or exit from the driving place.
• Extraordinary manoeuvrability due to the use of pilot assisted controls (joy-sticks) to operate arms and buckets.
• Straight travel contemporary with all arms/bucket manoeuvring.
• Rollers and idler wheels with rolling bushing replacing the slithering bushes for a remarkable increasing in the traction and life time performances.

Standard equipment

• Canopy according to TOPS-FOPS norms
• Fully servo-controlled commands
• 2-speeds travel electric switch
• Oil recovering system on dipstick ram
• 1200 mm long dipstick
• Hydraulic Power Take-Off (P.T.O.)

USE & MAINTENANCE and SPARE PARTS MANUAL

Options

• Buckets of mm 250, 350, 400, 450, 500 standard, for rocks and for Quick Hitches
• Buckets for slopes standard or swivelling
• Buckets for cleaning
• Mechanical or hydraulic Quick Hitches
• Hydraulic breaker
• Hand breaker
• Hydraulic drill
• Grass-bush cutter
• Steel tracks
• Additional ballast (202 Kg)
• 1500 mm longer arm
• Cab with heating system according to TOPS norms
• Air conditioning
• Additional auxiliary hydraulic lines

*Data, features and illustrations are not binding and may be altered without any notice.

 Weight

2850/3050kg

Engine power

STAGE V

18.5kW

Digging depth

2820mm

Type

Zero tail swing
