ELECTRIC VEHICLE FOR PAVEMENT INSTALLATION VM-301 UP TO 650KG

Installation Machine VM-301-GREENLINE

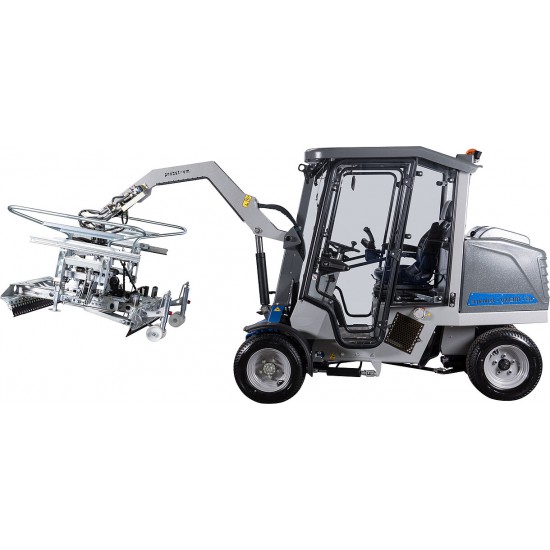

Installation Machine VM-301-GREENLINE – the new scale in mechanical paving

• All machine functions are powered by maintenance-free asynchronous motors.
• Up to 8 kW drive power transmitted to the drive gears by a differential axle.
• Hydraulic unit with up to 5 kW of power to supply the work hydraulic system.
• Automatic electric parking brake on the front axle.
• Basic device incl. hydraulic rotator, without attachment.

Battery technology / Basic version:

• 2 lithium ion rechargeable batteries at 48 V, 105 Ah.
• Total: 210 Ah / 10.1 KWh
• Recharging technology: 2 on-board chargers, each 48 V, 50 A
• Charging time (battery power at 0 %) on a 230 V power supply: approx. 4.6 h
• Charging time (battery power at 0 %) on a 400 V power supply: approx. 2.3 h
• Max. battery life up to 6 hours of paving operation (without electrical consumers such as heating, fan, lights, radio ...). With intermediate charging (with quick charge function 400V / e.g. 1 h during lunch break) up to 8 h of paving operation.
• For 50% more battery capacity: optional 3 lithium-ion rechargeable battery at 48V, 105Ah.

 Further information

• Fully glazed tubular steel cabin for weather protection with heating and windscreen wiper.
• Continuous hydraulic rotator.
• Electronic joystick with arm support for controlling main/ side gripping width and rotator.
• Emission-free and low-noise operation.
• Very low vibrations.
• Very efficient use of energy thanks to the refined electric motors.

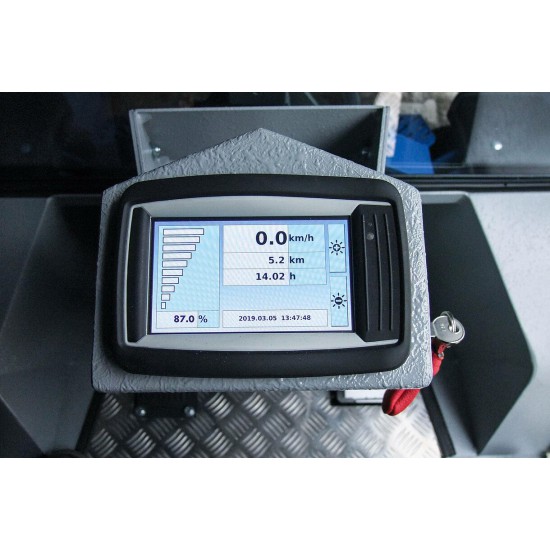

• Display with indicator for battery level, driving speed, operating hours, etc.
• Wide diameter tyres and high ground clearance, therefore suitable also in rough terrain.
• Wide pivoting range of approximately 1,600 mm from a standing position is achieved solely by a steering movement – and without shifting of the pavement.
• Double articulated steering enables manoeuverability in the tightest spaces.
• Unlimited all-round-view for the driver, important when driving backwards.

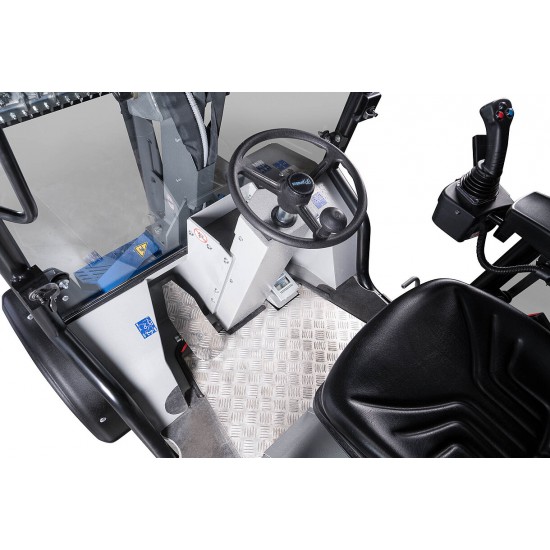

• Ergonomical positioning of the seat, steering wheel, joystick, operating lever and pedal.
• With standard built-in radio.
