Telescopic Screeding System TAS-UNI max 600kg
- Stock: Delivery 25-30 wo.days
- Model: 2286
0,00€
0,00€
(With Tax)
Telescopic Screeding System TAS-UNI
- Universally suitable for precise and flexible screeding of laying courses on both, large and small sites. Comfortable upright working position.

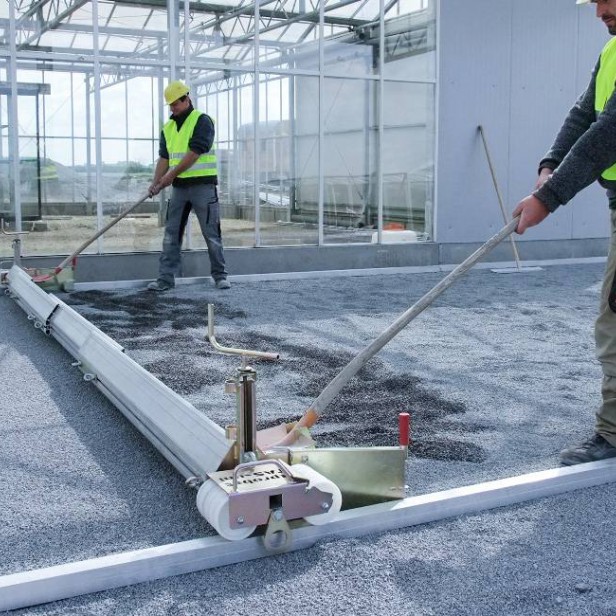

- Platform atop the roller unit on which the operator can stand to increase the pressure to the ground when using the TAS-UNI mechanically.
- Each side equipped with height adjustable roller units, including screeding rail cleaning wiper as well as material turn-away metal sheet.
Further information
- The aluminium profile has been optimized. So the device does neither move upwards when pulled by hand nor when pulled with chains mechanically. In one run a clean and exact screed can be produced.
- The profile was increased in order to be able to move more material when the pre-distribution of the screeding material is very rough.
- Working width up to 6,000 mm (20 feet) by duplicating the profile.
- Special aluminium profiles, consisting of a low wear, high-tensile alloy are designed to be fully telescopic with one another, seamlessly. With integrated jam system to lock the telescopic parts in any desired position.
- All metall parts are galvanized.
- Proper height adjustment can be read from a scale (0 – 25 cm / 0 – 9¾ inch).

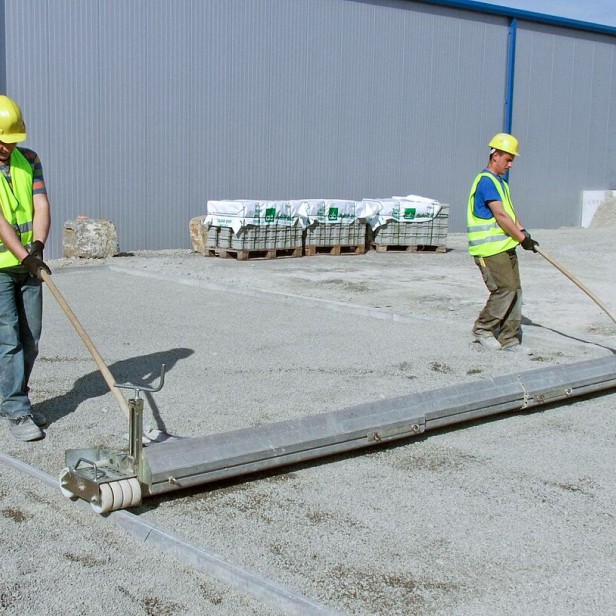

- For hand operation the TAS can be easily pulled by means of standard shovels while standing in comfortable upright position.
Scope of
supply
- TAS-UNI-450:
recommended basic configuration: 1 Aluminium-Profile each of 750, 1,000, 1,750,
2,000 mm (29½, 39½, 68¾, 78¾ inch) long with integrated clamping adjustment. 1
set = 2 side positioned, height-adjustable roller units with metal steps and
sheet-metal wipers with integrated fastener for the required segments with
hook-in-system for shovel. 2 pulling chains, incl. hooks.
- TAS-UNI-600:
standard configuration as above, plus 1 Alu-Profile 3,000 mm (118¼ inch) long.
