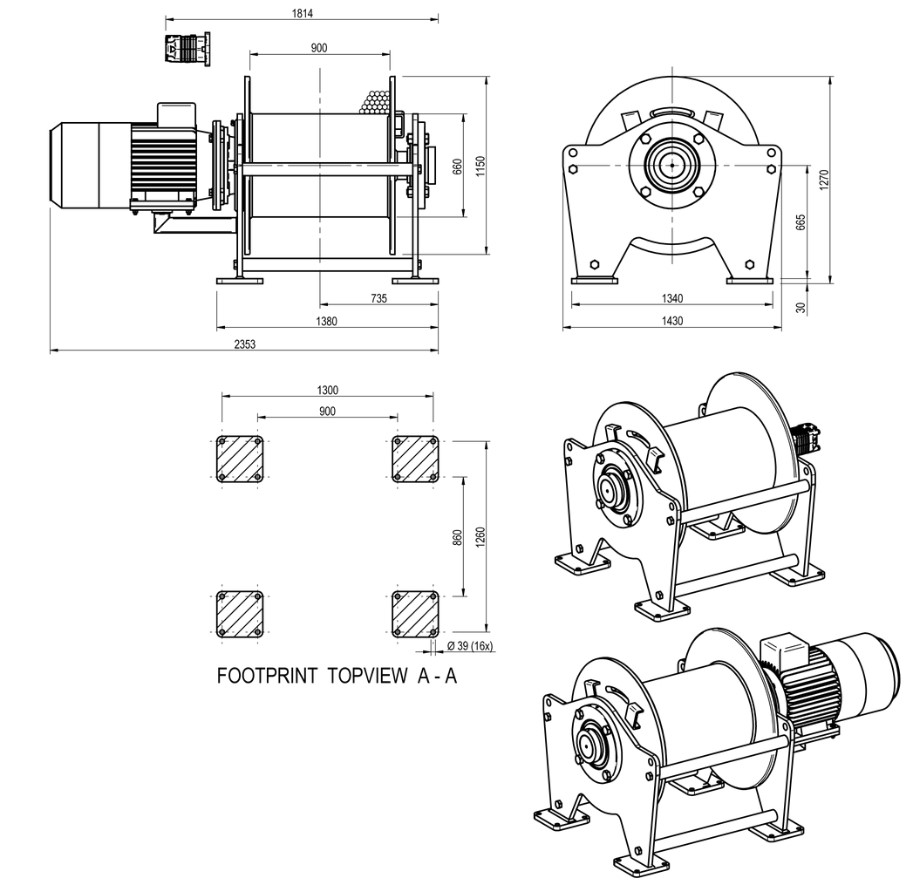

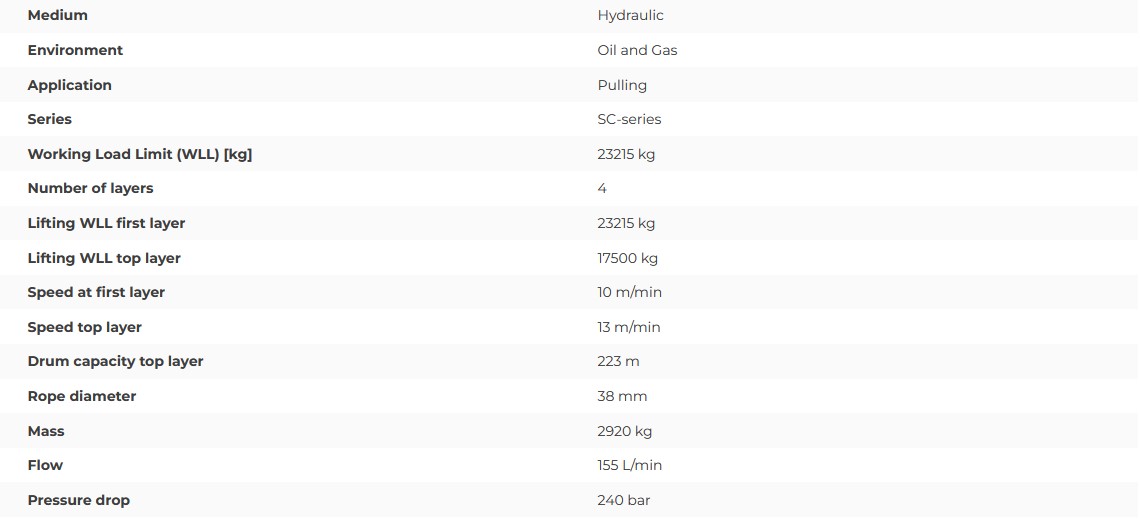

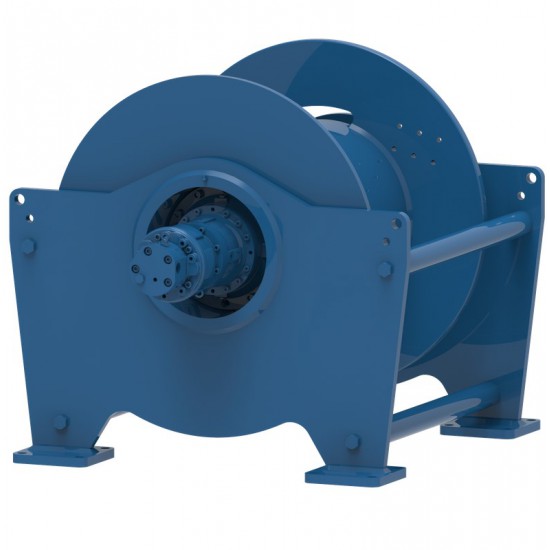

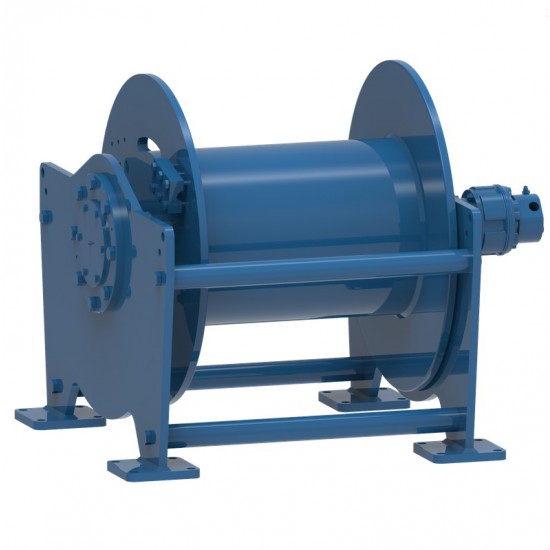

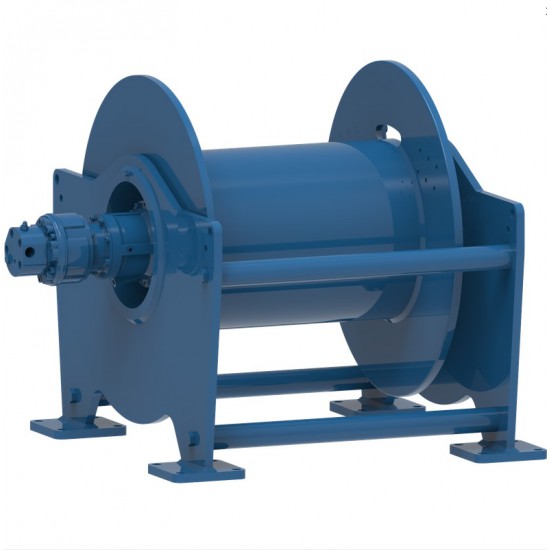

SC 175 HE HYDRAULIC WIRE ROPE WINCH FOR PULL 23215 kg 223 m 380V

Personnel lifting winches are mainly built to client specifi cations and can be executed with a self-braking worm-, helical- or planetary gear depending on the load required. The drive can be either electric, hydraulic or pneumatic. EMCE has supplied manriding systems up to a working load limit of 10,000 kg.

EMCE have supplied winches for the following applications:

• safety harness or a boatswain's chairs
• diving frame applications
• baskets or platforms
• cable way rescue winches

  As safety is most important with personnel lifting applications a third party design review is often required. The type of design review is however very much depending on the local rules and regulations. For onshore personnel lifting applications within the European Union often a EC type examination is required. Offshore personnel lifting winches often require the same class as the ship or rig they are being used on. Most common classifi cations for offshore personnel lifting winches are LRS, ABS, DNV and GL.

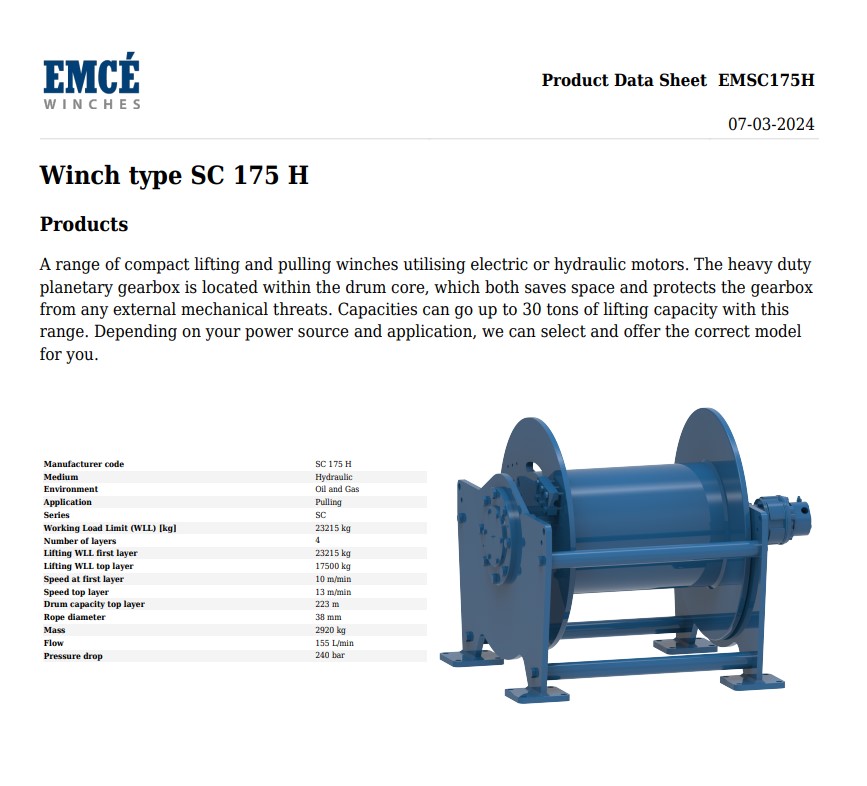

  A range of compact lifting and pulling winches utilising electric or hydraulic motors. The heavy duty planetary gearbox is located within the drum core, which both saves space and protects the gearbox from any external mechanical threats. Capacities can go up to 30 tons of lifting capacity with this range. Depending on your power source and application, we can select and offer the correct model for you.
  Standard features

      Heavy duty planetary gearbox
      SC E IP 54 400 V AC / 3-phases / 50 Hz braked motor
      SC H; orbit or radial piston type hydraulic motor complete with brake valve
      Steel drum with cable fixing point at flange
      Two drum supports
      Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010
      FEM / ISO class: T4-L3-M5


  Mechanical options

      IP 56 TENV cast iron motor for marine applications
      Explosion-proof motors
      Protective steel motor cover
      Drum pressure roller
      Band brakes (manual or fail-safe automatic)
      Manually disengaging clutch
      Alternative speeds
      Alternative supply voltages
      Drum guards
      Spooling gears
      Grooved drums
      Marine / offshore coating systems

  Control options

      Control box IP 55 with push-buttons and emergency stop built acc. to NEN60204-32
      Control box IP 66 with low-voltage IP 65 remote control built acc. to NEN60204-32
      Load limiter (required by CE for applications exceeding 1000 kg WLL.)
      Frequency inverter for variable speed control Wireless radio remote control systems
      Limit switches (electric)
      Flange encoder
      Slack wire switches (electric)
      Proportional local or remote control valve (hydraulic)
