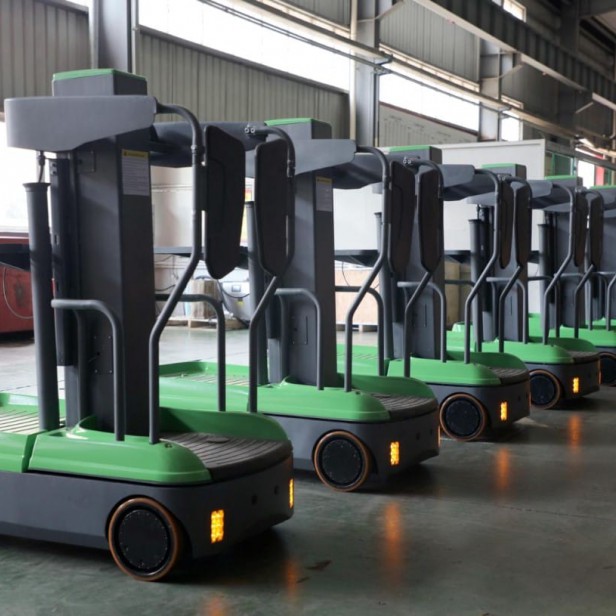

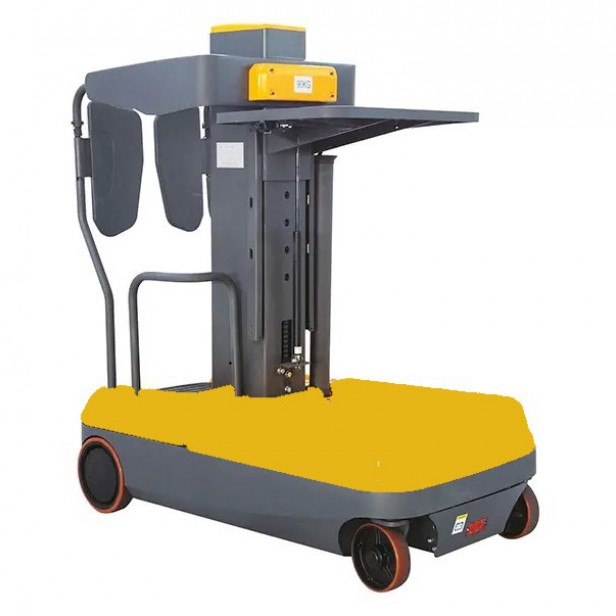

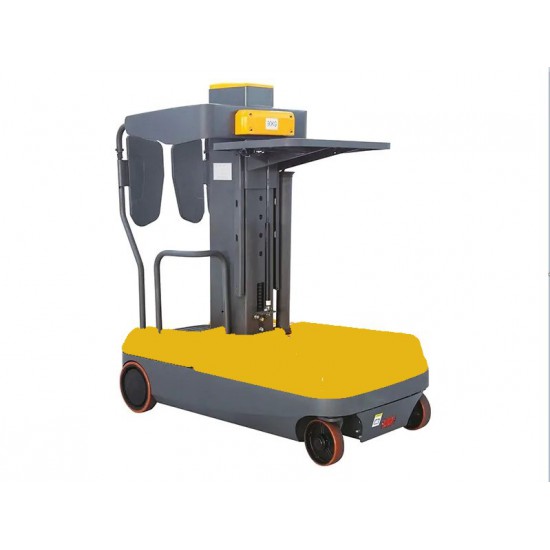

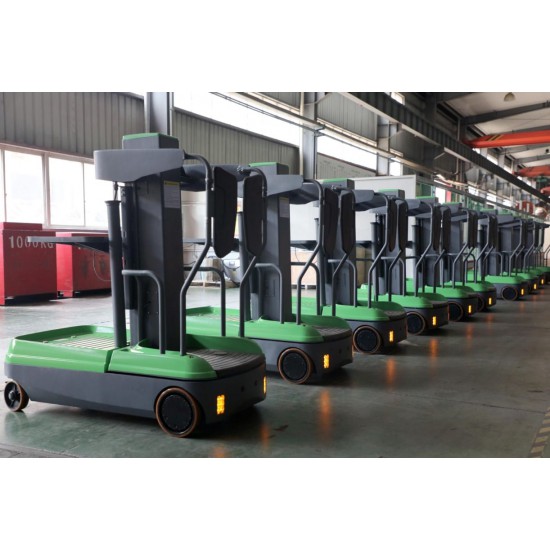

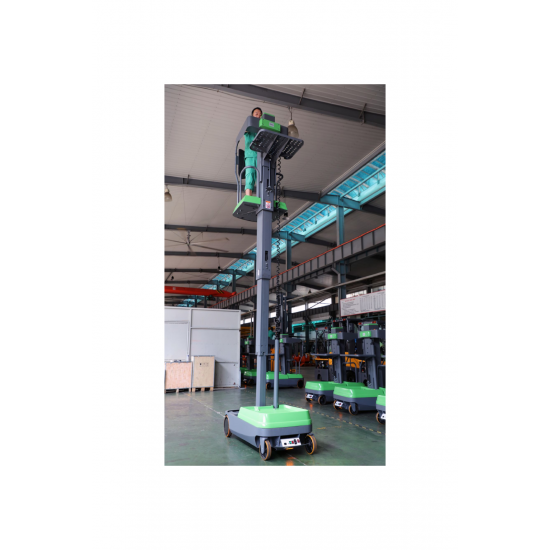

OSAKA BRAVO ORDER PICKER 5M WORKING HEIGHT

BRAVO OSAKA is an innovative, yet simple product. Once you try it, stairs won't do the job anymore.

• An innovative electric vertical platform with motorized lifting/lowerin
• Working height 5 m
• Manually adjustable loading tray that is easily mounted from the platform
• 70 cm wide, 50 cm long
• Weight only 750 kg


• Loft: 150kg + 90kg

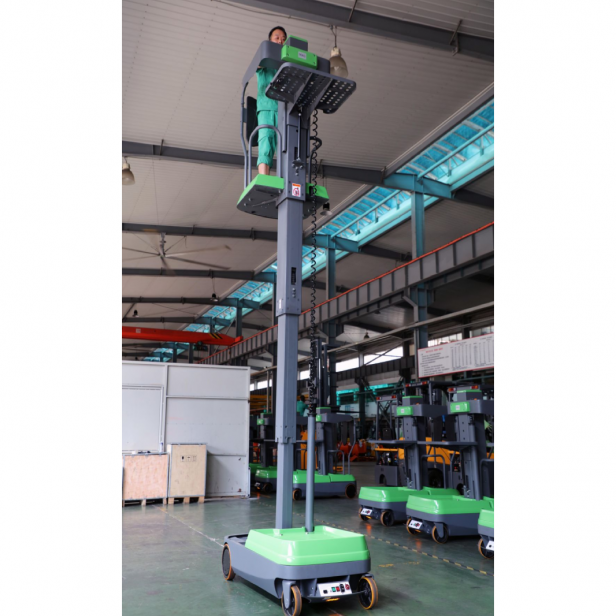

• Platform height for operator: 3000mm

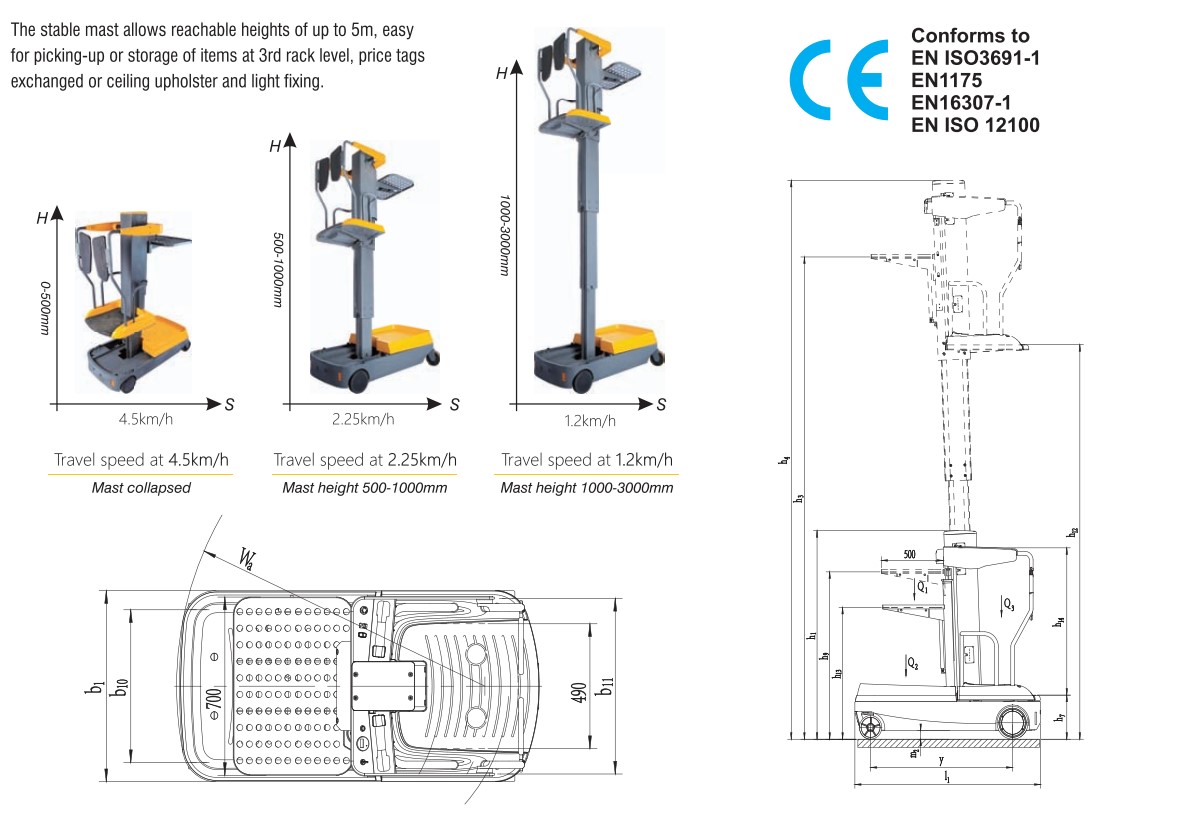

• Maximum working height: 5000mm
• Own weight: 750 kg
• Gel battery and charger
• CURTIS Controller
• Overall length: 1500 mm
• Overall width:750 mm
• Turn radius:1300 mm
• Speed of movement with load/over-free: 4.5 km/h\
• Adjusted speed of movement relative to the height at which the platform is raised
• Easy and reliable to operate

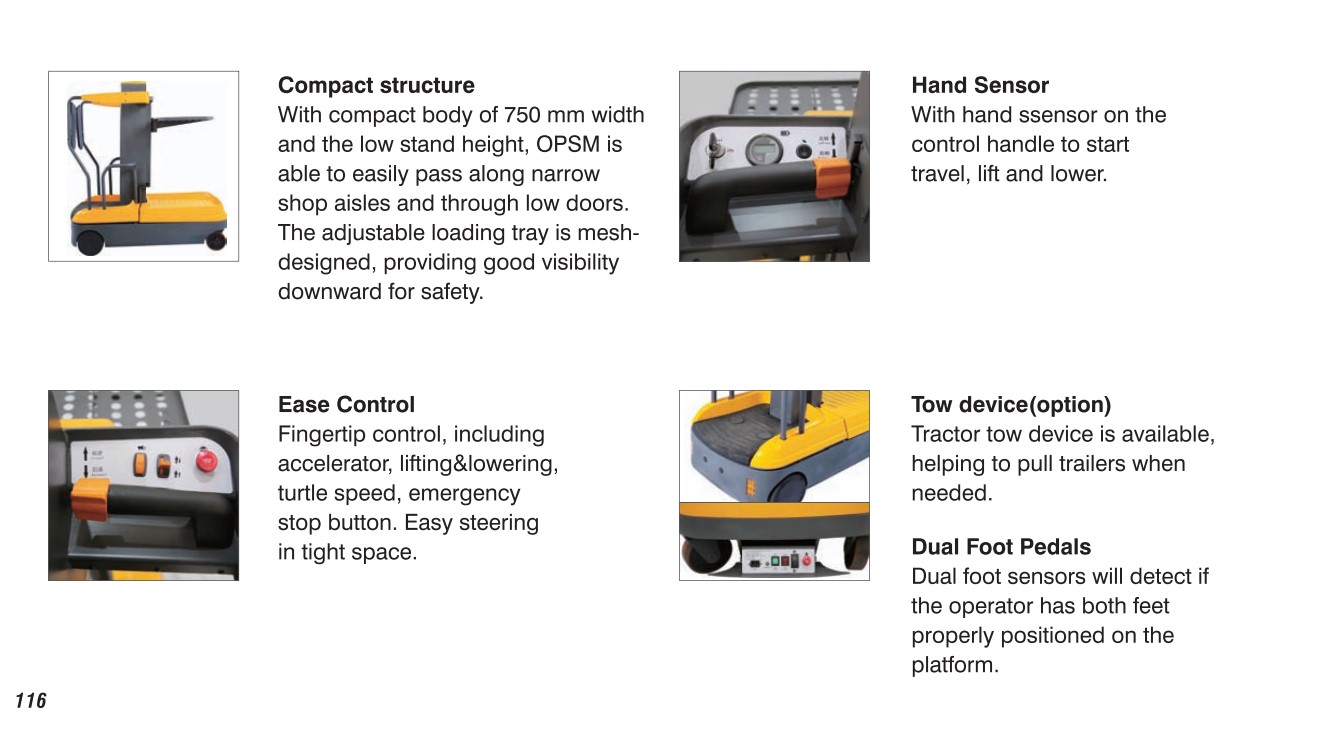

• Two sensors for presence


Warehouse Assistant OSAKA BRAVO

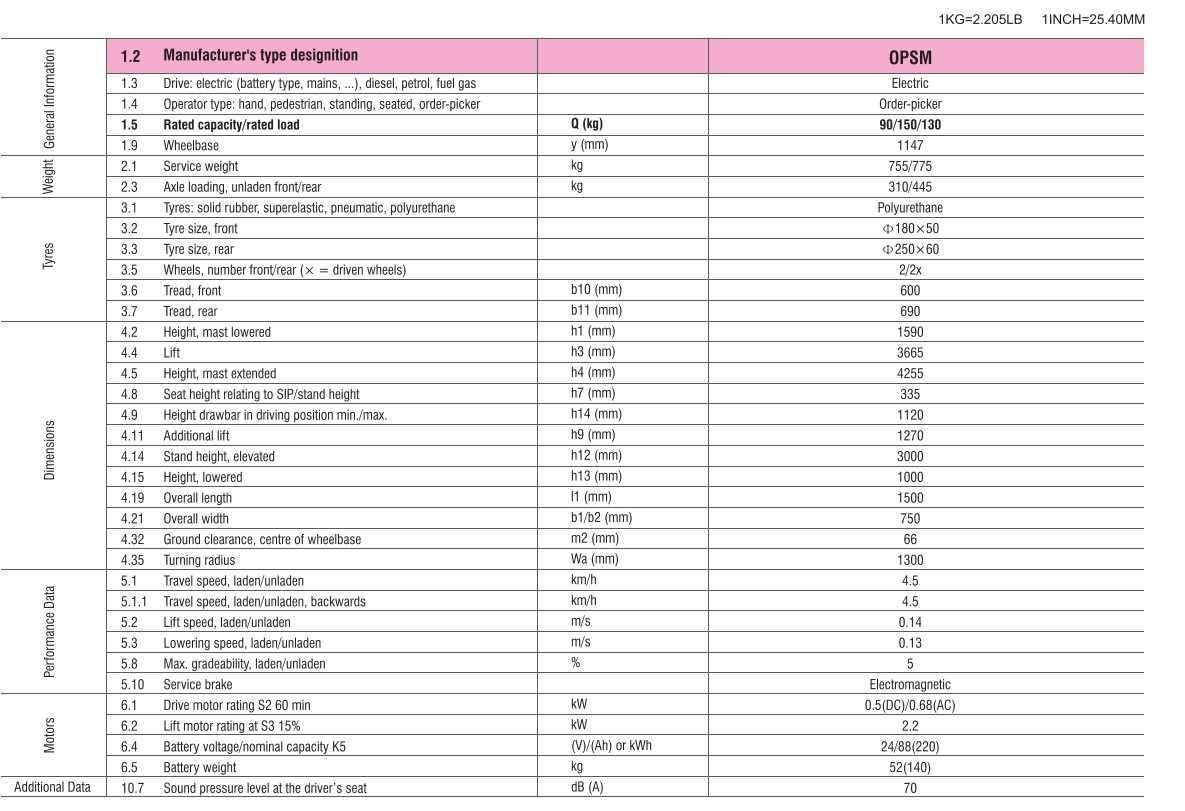

Loft: 150kg + 90kg

Platform height for operator: 3000mm

Maximum working height: 5000mm

Own weight: 750 kg

Gel battery and charger

CURTIS Controller

Overall length: 1500 mm

Overall width:750 mm

Turn radius:1300 mm

Speed of movement with load/over-free: 4.5 km/h

Adjusted speed of movement relative to the height at which the platform is raised

Easy and reliable to operate

Two sensors for presence
