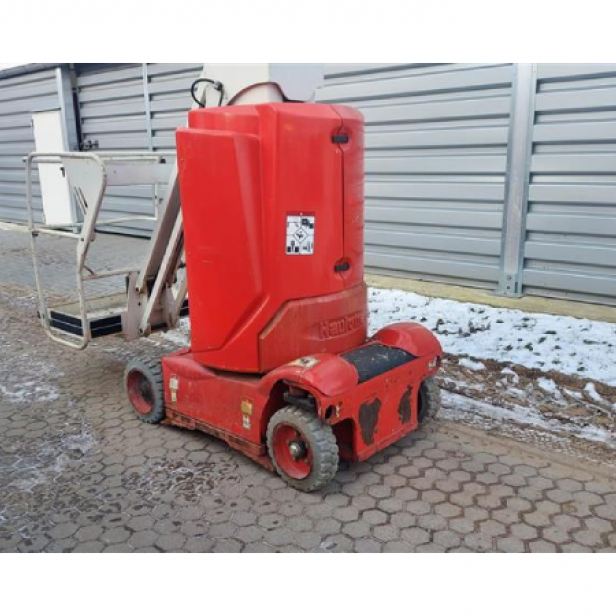

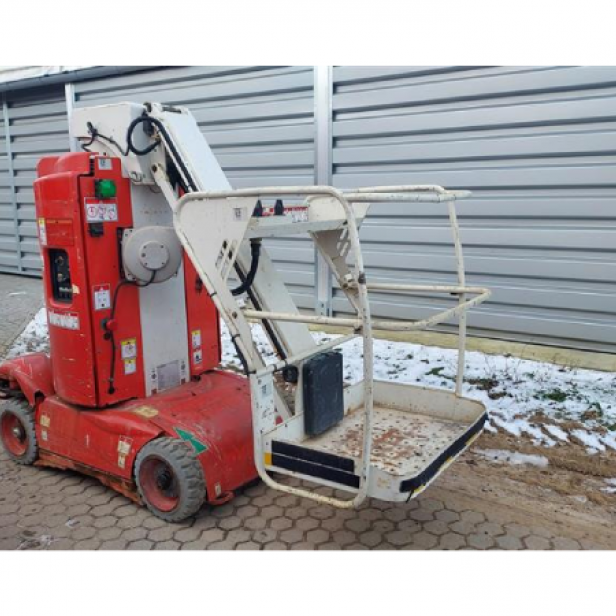

USED HAULOTTE STAR 10 - 10Μ WORKING HEIGHT (2012)

HAULOTTE STAR 10 BOOM LIFT

Agile, robust, easy to use and maintain, STAR vertical masts are intended for use in multiple applications. The STAR range is equipped with asynchronous motors (AC) that combine proportionality and torque. Ideal on congested and difficult-to-access sites, the STAR 10 jib has a 3-meter outreach for maximum productivity. The STAR 10 has zero tail swing. During turret rotation, nothing protrudes from the frame. The machine and its environment are protected.

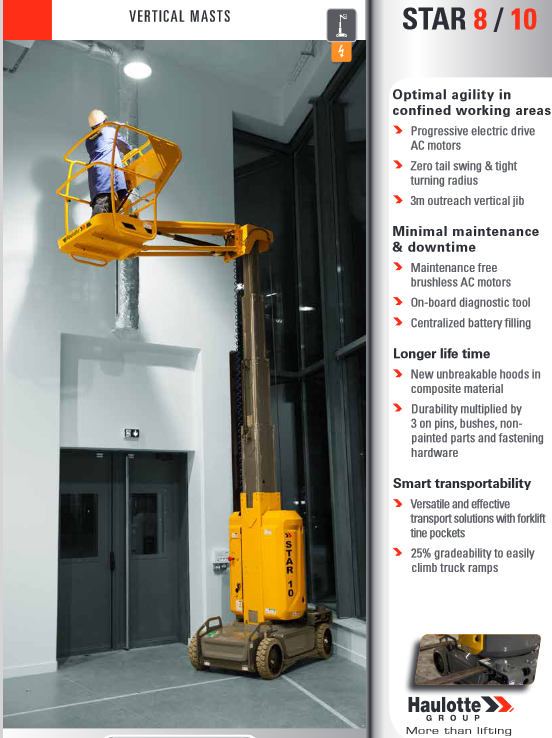

Presentation

• Optimal agility in confined working areas
• Minimal maintenance & downtime
• Longer life time
• Smart transportability

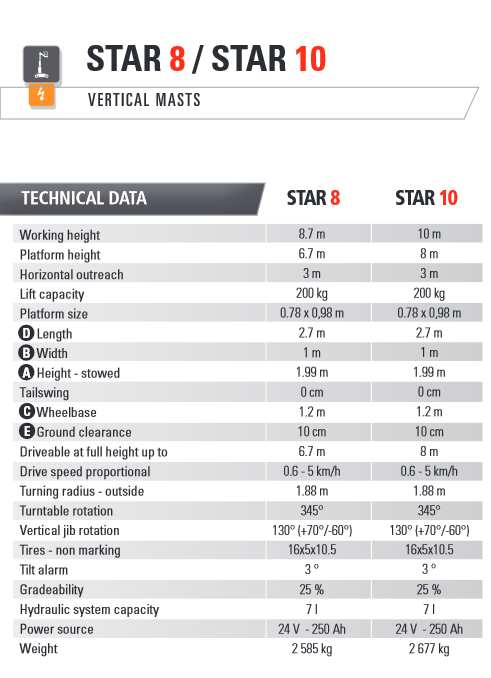

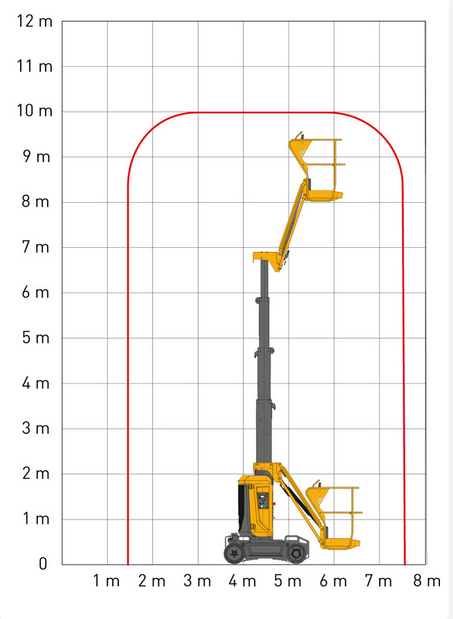

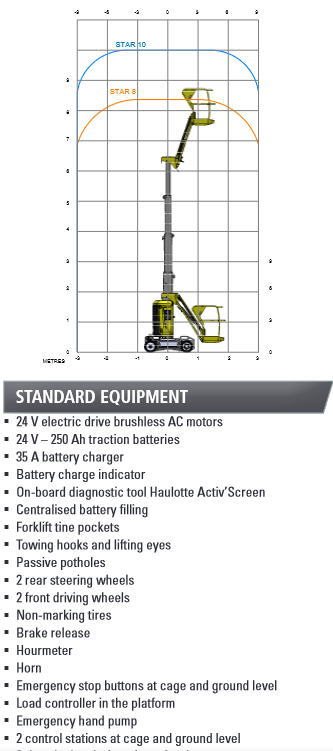

Working height 10 m
Platform height  8 m
Horizontal outreach  3 m
Lift capacity - inside 200 kg (2 pers.)
Lift capacity - outside  200 kg (1 pers.)

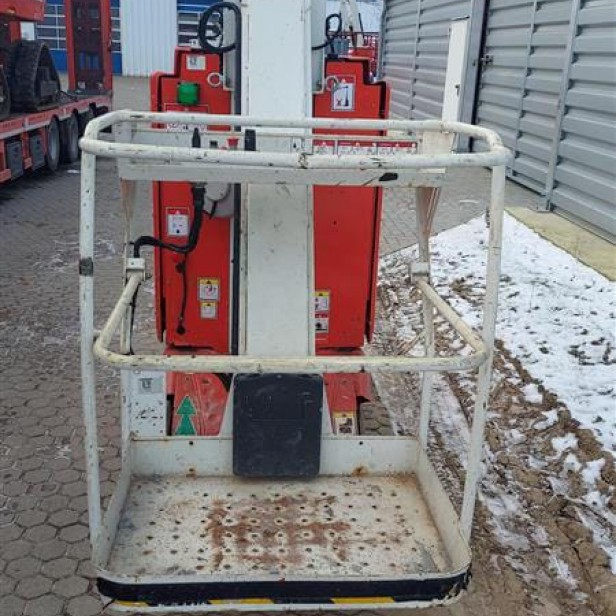

Platform size 0.78 x 0,98 m

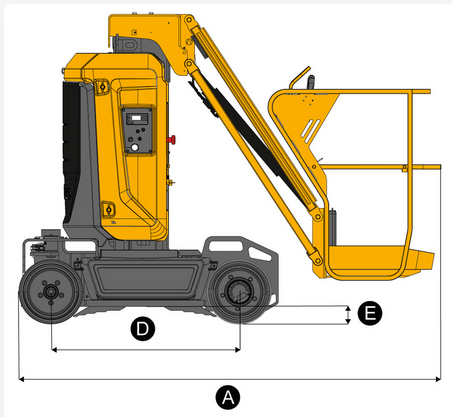

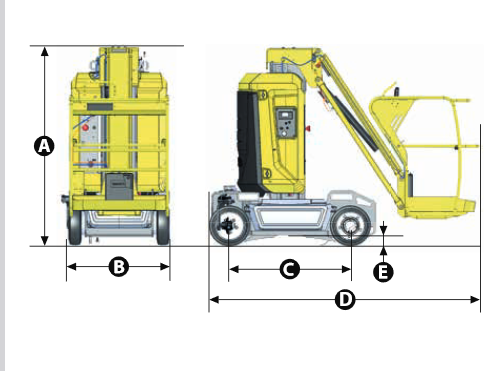

Length  2.7 m

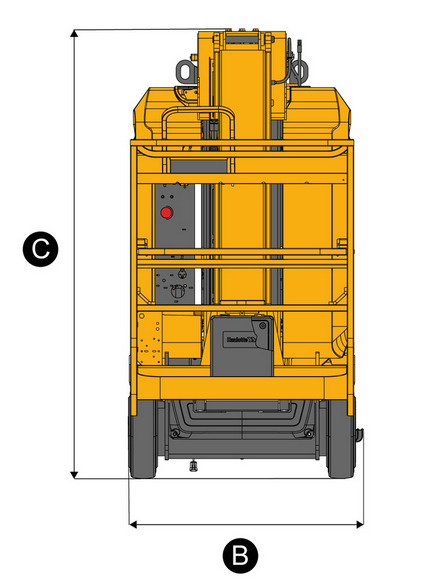

Width  1 m
Height - stowed 1.99 m
Tailswing 0 cm
Wheelbase 1.2 m
Ground clearance 10 cm
