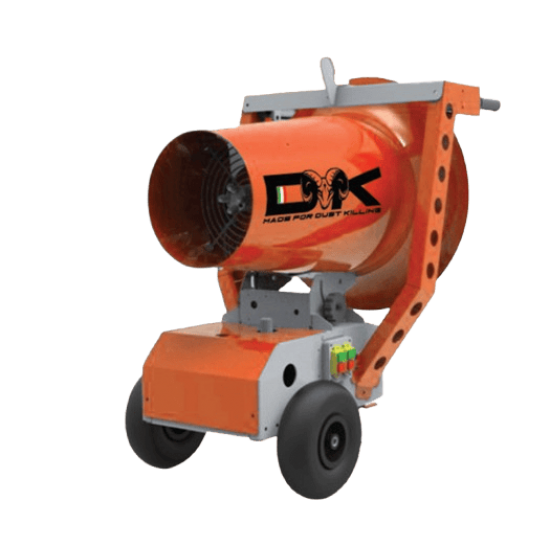

DUST SUPPRESSION SYSTEMS-WATER SPRAY DK20

 DK20

DK is the " dust killing ” branch of M.E.TA. Srl. Thanks to a broad experienced team of engineers, designers and technicians, it has created a range of avant-garde dust and smell killing systems formed by three product lines.

Water misting with the appropriate study traps the suspended dust in the environment with water droplets and 'forces' it to fall to the ground-floor without increasing the humidity in the space. At the same time, it also lowers the temperature of the environment. The water mist dust suppression system is used on any dust source easily without the need to modify the existing installation. Suppression is achieved by studying the type of dust, its grain size and its density in space. If the dust is not trapped only with the water droplets, then we add some additives to the water to have a better effect of suppressing the dust without naturally harming humans

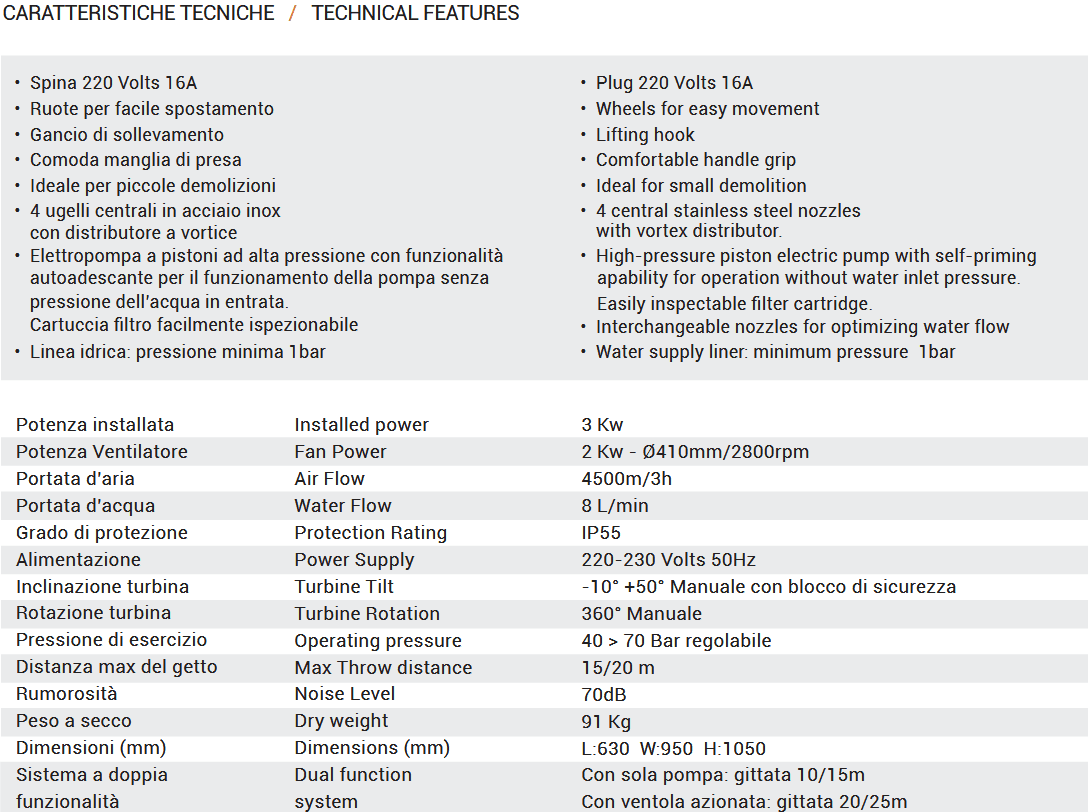

Installed power 3 Kw
Fan Power 2 Kw - Ø410mm/2800rpm
Air Flow 4500m/3h
Water Flow 8 L/min
Protection Rating IP55
Power Supply 220-230 Volts 50Hz
Turbine Tilt -10° +50° Manual with safety block
Turbine Rotation  360° Manuale
Operating pressure 40 > 70 Bar adjustable

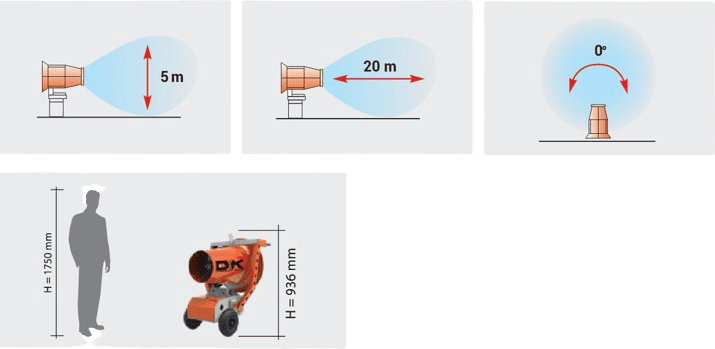

Max Throw distance 15/20 m
Noise Level 70dB
Dry weight 91 Kg
Dimensions (mm)  L:630 W:950 H:1050
Dual function system  With pump only: range 10/15m With fan on: range 20/25m

• Plug 220 Volts 16
• Wheels for easy movement
• Lifting hook
• Comfortable handle grip
• Ideal for small demolition

•  4 central stainless steel nozzles with vortex distributor.

• High-pressure piston electric pump with self-priming pability for operation without water inlet pressure.pability for operation without water inlet pressure.
  Easily inspectable filter cartridge
• Interchangeable nozzles for optimizing water flow
• Water supply liner: minimum pressure 1bar
