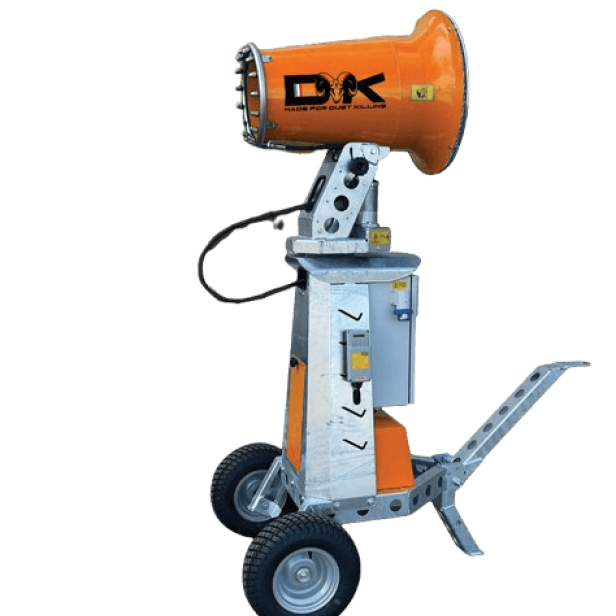

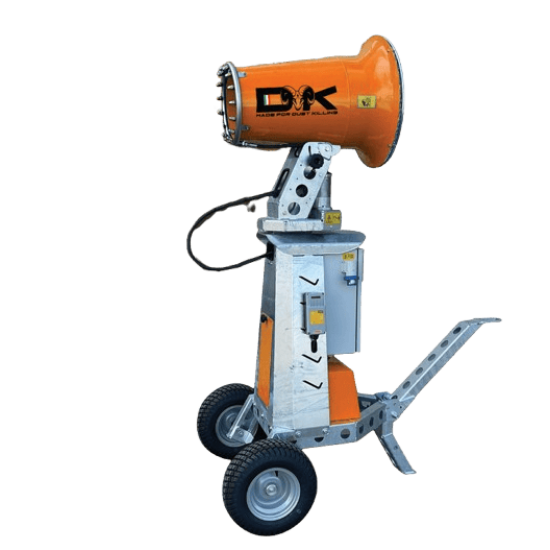

DUST SUPPRESSION SYSTEMS-WATER SPRAY DK50

 DK50

 DK is  the " dust killing ” branch of M.E.TA. Srl. Thanks to a broad experienced team of engineers, designers and technicians, it has created a range of avant-garde dust and smell killing systems formed by three product lines.

Water misting with the appropriate study traps the suspended dust in the environment with water droplets and 'forces' it to fall to the ground-floor without increasing the humidity in the space. At the same time, it also lowers the temperature of the environment. The water mist dust suppression system is used on any dust source easily without the need to modify the existing installation. Suppression is achieved by studying the type of dust, its grain size and its density in space. If the dust is not trapped only with the water droplets, then we add some additives to the water to have a better effect of suppressing the dust without naturally harming humans

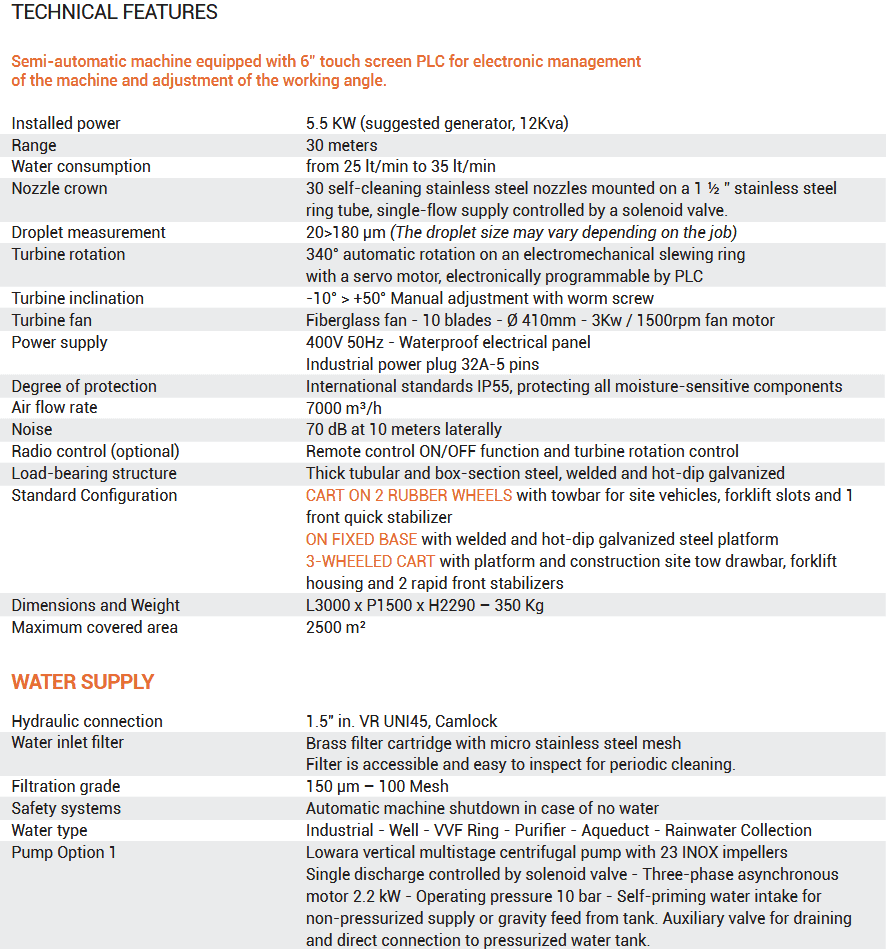

Installed power 5.5 KW (suggested generator, 12Kva)
Range   30 meters
Water consumption from 25 lt/min to 35 lt/min
Nozzle crown 30 self-cleaning stainless steel nozzles mounted on a 1 ½ ” stainless steel
ring tube, single-flow supply controlled by a solenoid valve
Single-feed operation controlled by solenoid valve.
Droplet measurement  20>180 μm (The droplet size may vary depending on the job)
Turbine rotation 340° automatic rotation on an electromechanical slewing ring
with a servo motor, electronically programmable by PLC
Turbine inclination -10° > +50° Manual adjustment with worm screw
Turbine fan Fiberglass fan - 10 blades - Ø 410mm - 3Kw / 1500rpm fan motor
Power supply   400V 50Hz - Waterproof electrical panel
Industrial power plug 32A-5 pins
Degree of protection International standards IP55, protecting all moisture-sensitive components
Air flow rate 7000 m³/h
Noise 70 dB at 10 meters laterally
Radio control (optional) Remote control ON/OFF function and turbine rotation control
Load-bearing structure Thick tubular and box-section steel, welded and hot-dip galvanized
Standard Configuratio CART ON 2 RUBBER WHEELS with towbar for site vehicles
Forklift slots and 1 front quick stabilizer
Dimensions and Weight L3000 x P1500 x H2290 – 350 Kg
Maximum covered 2500 m²

WATER SUPPLY

Hydraulic connection 1.5" in. VR UNI45, Camlock
Water inlet filter Brass filter cartridge with micro stainless steel mesh
Filter is accessible and easy to inspect for periodic cleaning
Filtration grade 150 μm – 100 Mesh
Safety systems Automatic machine shutdown in case of no water
Water type Industrial - Well - VVF Ring - Purifier - Aqueduct - Rainwater Collection
Pump Option 1 Lowara vertical multistage centrifugal pump with 23 INOX impellers
Single discharge controlled by solenoid valve - Three-phase asynchronous
motor 2.2 kW - Operating pressure 10 bar - Self-priming water intake for
non-pressurized supply or gravity feed from tank. Auxiliary valve for draining
and direct connection to pressurized water tank.
