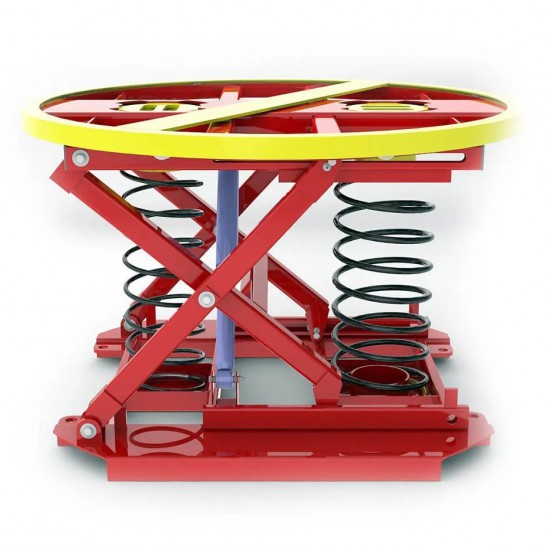

MARCO Pallet Pal Spring Lift table for 2000kg

Pallet Pal Spring
Lift table

Mechanics:
- Rugged tubular steel frame for loads up to 2000 kg
-Heavy-duty springs calibrat-ed to bring pallet to most convenient height
-Proven linkage design maintains level under uneven loading
-Damper to provide smooth, gradual raising and lower-ing, without overshoot
or bounce
-Low-friction bearing-supported turntable for near-side loading and unloading
-Extremely stable base – no lagging required
-Integral fork pockets for easy relocation
-E36Spring changes are fast and easy – no tools required
Safety:
- Signs with pictograms Security Notice
- Operating and maintenance instructions included
Finish:
-Lifting tables are painted with a two component isocyanat-free oxianester type
epoxy (80 my) with active rust protect pigment

Pallet Pal Spring
Lift table - category , according to EN1570-1:2011+A1:2014, Declaration of
conformity - EU Machinery directive 2006/42/EC, Annex IIA
Capacity: 2000 kg
Stroke (3): 470 mm
Closed height (4): 241 mm
Total Height (2): 711 mm
Platform length (1): 1108 mm
Platform width (5): 1108 mm
Color, Lift table: Red And Yellow
