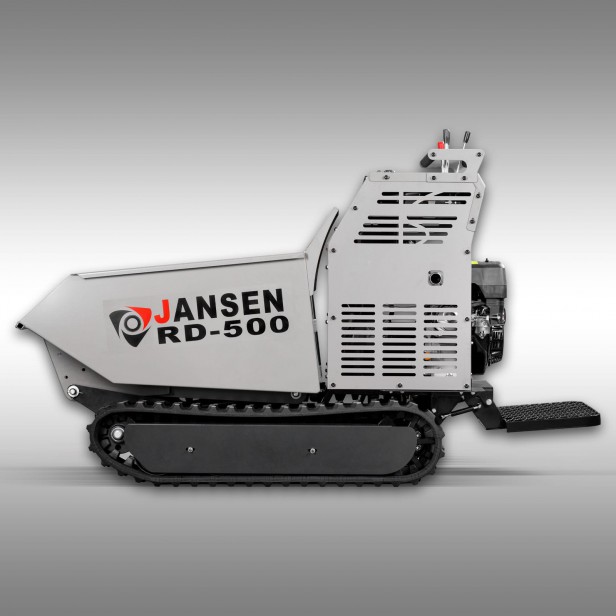

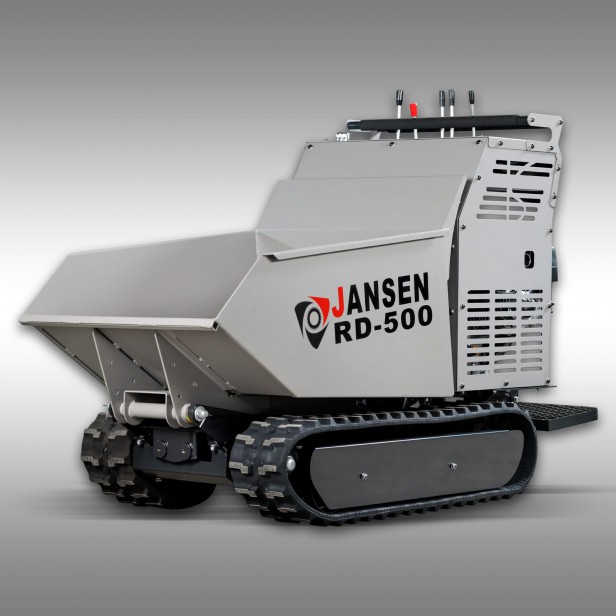

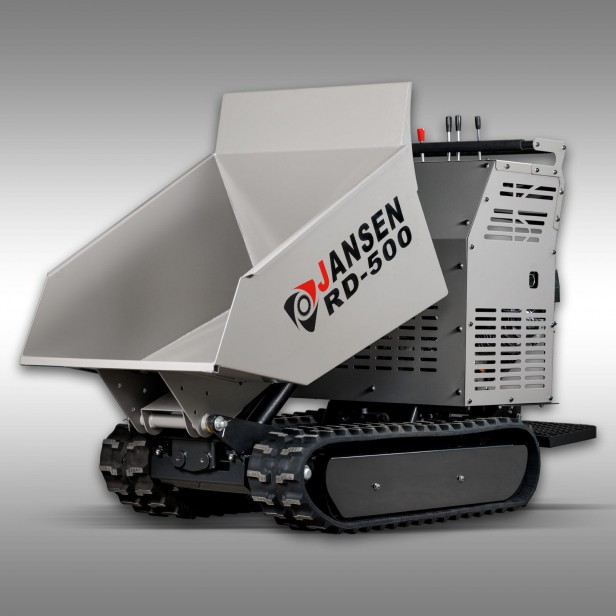

JANSEN TRACKED DUMPER RD-500 500KG

The Jansen RD-500 track dumper is the newest model in our dumper series. The highlight is its hydrostatic drive mechanism!

The crawler dumper is self-propelled and the skip can be tipped. A hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this. Our mini-dumper sets itself apart from the competition with this function! The lifting and lowering process is complete within a matter of seconds. The skip has the dimensions 940x670x640 mm.

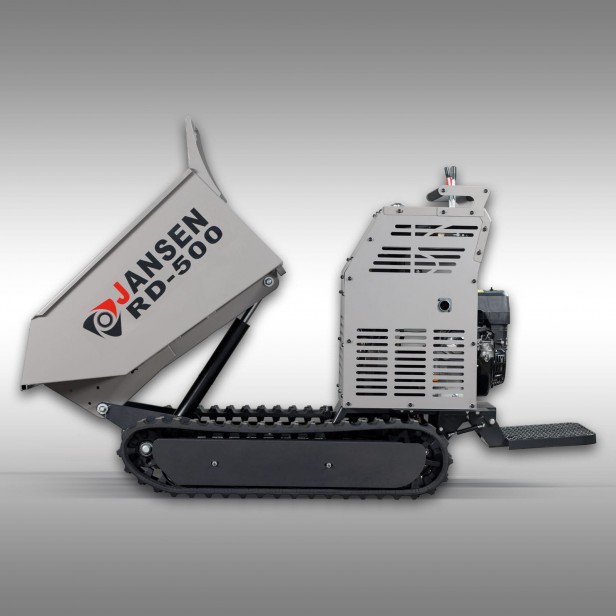

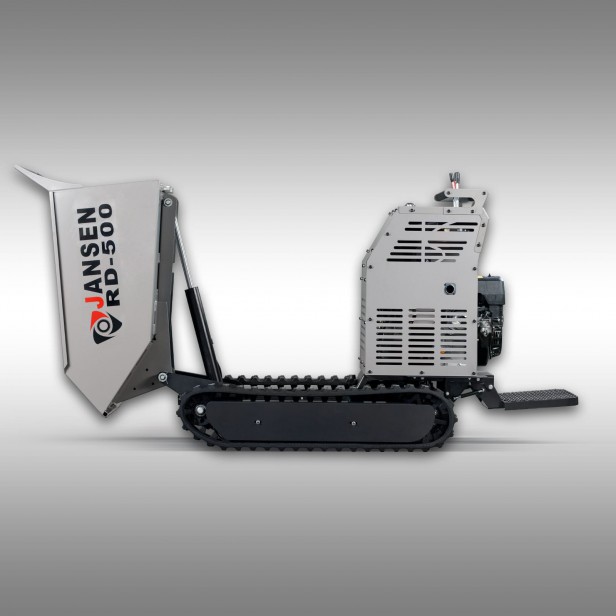

The tipping angle of the bucket exceeds 90°, which makes unloading much easier.

There are many competing products offering very similar looking machines. Be sure to check these products in detail and in comparison to our RD-500. We deliver a strengthened version of the machine with a similarly strengthened bucket (wall thickness 4 mm). In contrast to many other offers, the ejecting side of our RD-500 bucket is straight and not funneled. This channeled shape causes problems when tipping-out bulky material. With the rectangular design of our bucket, you can dump all materials with ease.

The drive mechanism of the RD-500 is completely hydrostatic - this type of drive mechanism offers many advantages:

• Continuously adjustable speed regulation
• Linear drive motion with high mechanical efficiency
• High torque
• Secure and fast acting overload protection
• Very long service life
• Low wear as hardly any friction is generated as in a conventional gear box
• Possible to set off from a fully-laden standing start

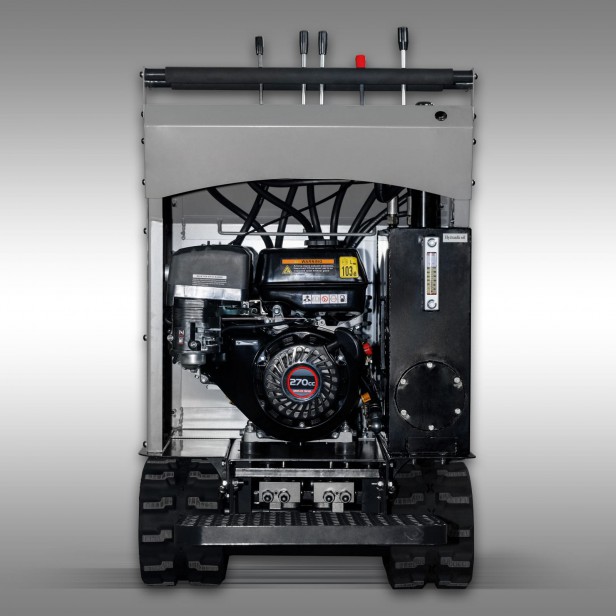

• Low maintenanceThe 9 HP Loncin engine delivers very good starting performance (even at low temperatures) and can be started using the recoil starter.



There are 2 speed-settings in both forward and reverse gears:

• Speed 1 forwards: 5 km/h
• Speed 2 forwards: 2.5 km/h
• Speed 1 backwards: 3 km/h

Its unique design, with a stable driver platform makes it possible for the operator to ride on-board comfortably. The platform can also be folded upward when it is not being used.

The machine is optimally suited for transporting sand, soil, gravel, stones, etc.

Technical specifications:

• 4-stroke OHV engine, 9 HP, 6,6 kW, Loncin
• Starter: Recoil starter
• Drive: Hydrostatic
• Speed: max.5 km/h
• Tank capacity: 5.5 litres
• Load capacity: max. 500 kg, at 30% gradient 375 kg
• Total weight (dry): 380 kg
• Weight including packaging: 415 kg
• Dimensions: 1730x740x1190 mm (LxWxH, bucket up)

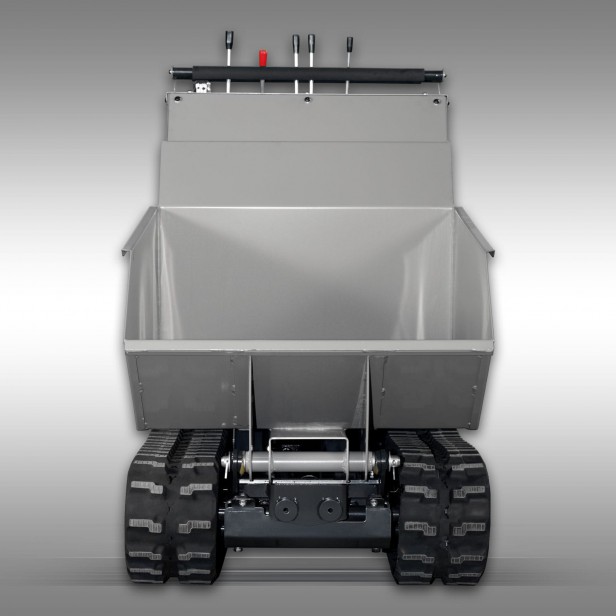

• Dimensions of bucket: 940x670x640 mm
• Packing Dimensions: 1770x800x1400 mm
• Drive skip: Hydraulic
