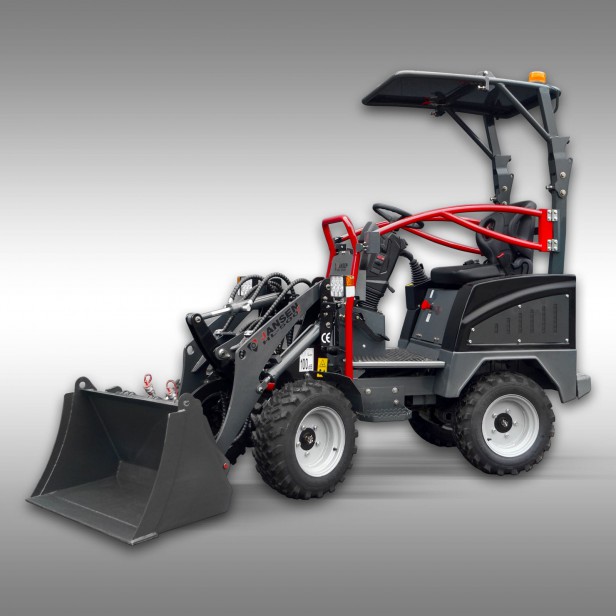

Jansen Mini telescopic wheel loader HL-500E 500KG

EFFICIENT AND ECO-FRIENDLY: THE JANSEN^® HL-500E ELECTRIC WHEEL LOADER FOR VERSATILE USE

Discover the powerful and environmentally friendly JANSEN^® HL-500E wheel loader – the perfect partner for various tasks on your premises. Designed with a focus on efficiency and user-friendliness, this battery-powered loader combines impressive specifications with a robust, compact design.

KEY FEATURES:

Eco-friendly Electric Drive: The electric drive of the Jansen^® HL-500E guarantees emission-free operation, which not only benefits the environment but also enables indoor use without compromising on power.

Performance and Capacity: The Jansen^® HL-500E offers a maximum lifting capacity of 500 kg, making it ideal for transporting heavy loads in confined spaces. With a maximum dumping height of approximately 1260 mm, bulk materials can be quickly and efficiently moved and unloaded. The front and rear axles are each powered by a powerful electric motor.

Technical Features: With a lifting height of about 1620 mm and a tipping range of approximately 525 mm, the loader can handle demanding lifting and loading tasks. The Jansen^® HL-500E tackles slopes of up to 15° and offers a maximum steering angle of 35°, providing exceptional maneuverability. The outer radius is approx. 5.0 m, the inner radius approx. 3.0 m.

Compact Dimensions: With an overall length of approximately 2500 mm and a total height of about 2190 mm (without roof approx. 1750 mm), combined with a bucket width of approximately 1080 mm, the Jansen^® HL-500E is ideal for tight working spaces. A wheelbase of approximately 1425 mm and ground clearance of around 328 mm ensure stability and mobility on various terrains.

Energy Efficiency: Equipped with a battery nominal capacity of 150 Ah and five batteries, the loader offers up to 6 hours of operation – ideal for extended work periods without frequent charging. The fully hydraulic steering system and drum brake provide precise control and safety in daily use.

Hydraulic System: The Jansen^® HL-500E features a hydraulic tank with a capacity of approximately 12 liters, sufficient to efficiently power hydraulic functions and ensure consistently strong performance.

Versatile Applications: With a variety of attachments, the Jansen^® HL-500E can be flexibly adapted to meet different requirements, whether for agricultural tasks, gardening, or livestock care.

A BROAD RANGE OF ATTACHMENTS EXPANDS ITS VERSATILITY:

• 4-in-1 bucket
• Clamshell bucket
• High-tip bucket
• Pallet fork
• Bale spear
• Bale clamp
• Snow blade

Weighing approximately 1020 kg, the JANSEN^® HL-500E Wheel Loader is not only robust but also lightweight enough for flexible use. Invest in the JANSEN^® HL-500E Wheel Loader for a reliable solution that boosts productivity while protecting the environment.
