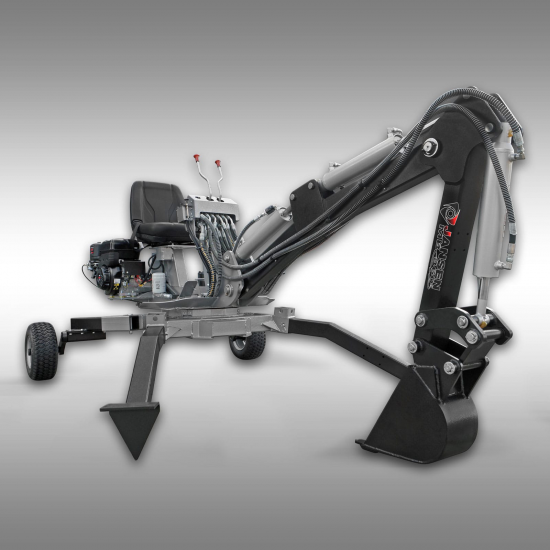

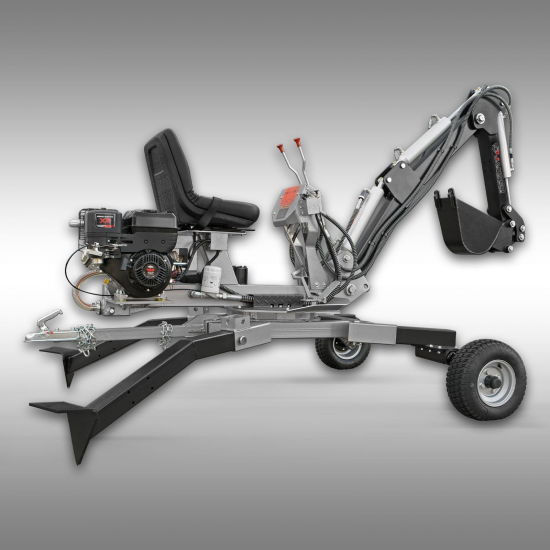

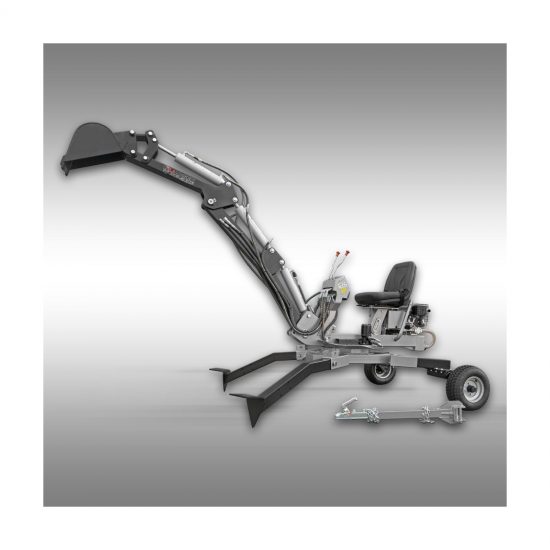

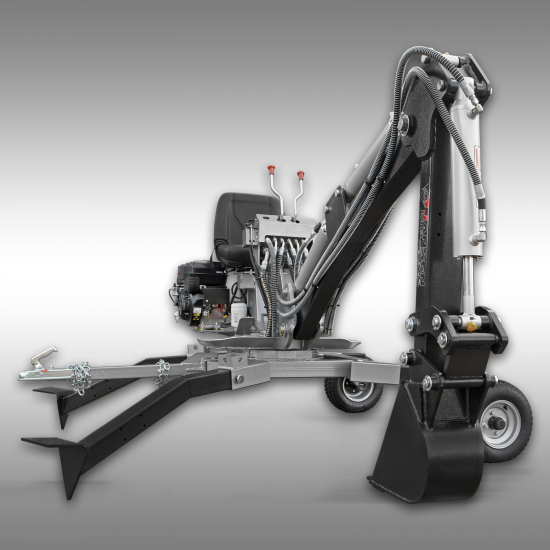

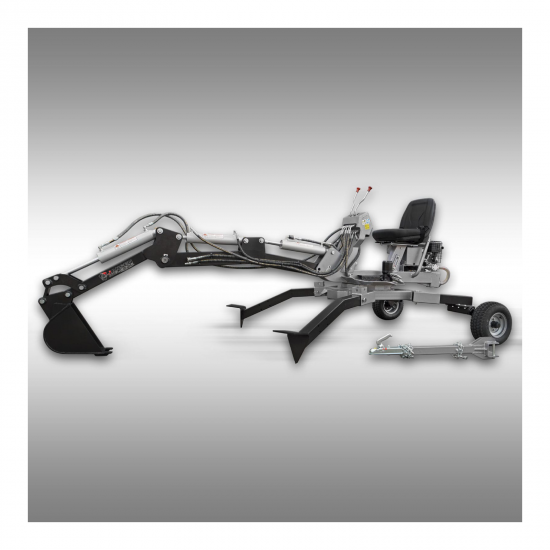

JANSEN Mini excavator Jansen MB-360°, petrol engine

THE NEW JANSEN^® MB-360° WALKING EXCAVATOR WITH 360 DEGREE SWIVEL

The Jansen MB-360° walking excavator with 360 degree swivel is the ideal solution for any challenging construction project in remote terrain and inaccessible locations. Featuring a 10 HP petrol engine and impressive technical properties, this mini excavator is an essential tool for DIY and professional use.

360° ROTATING ASSEMBLY / BOOM SWING
The special technical feature of the Jansen MB-360° is the 360 degree rotating assembly which allows for virtually unlimited swivel. This makes the excavator extremely versatile and flexible, even in the most challenging terrain
IDEAL FOR REMOTE LOCATIONS
This walking excavator was developed specifically to easily work in areas where conventional building equipment can't go. Marshy or mountain terrain are no longer an obstacle with the Jansen MB-360°. The ruggedness and power will impress you. The Jansen MB-360° is equipped with a removable towing bar for ball hitches to easily and safely transport the excavator from point A to point B. This unit does not have its own drive system; however, you can move position through pulling or pushing using the bucket.

RUGGED DESIGN AND TOUGH SUPPORTS
The rugged design of the Jansen MB-360° not only ensures high durability, but also stability during operation. The tough supports ensure it is secure, even in uneven terrain. To make the unit ready for transport, the wheels and supports are moved from the front to the back.

POWERFUL 10 HP ENGINE WITH ELECTRIC START
The powerful 10 HP petrol engine with electric starter and the powerful hydraulic system provide the power necessary to manage even the most challenging tasks. So you will always have the necessary power for tough jobs. The Jansen MB-360° features a hydraulic control unit for precision operation of the excavator functions. The intuitive four-way control lever steering makes it easier to use, improving efficiency at the job site.

OPTIONAL ACCESSORIES
A 20 cm wide bucket is included. As an optional extra, we can also deliver buckets of 35 and 60 cm width, as well as a trench bucket. We also offer an optional grab and ripper. Please feel free to contact us.

CONCLUSION
If you are in need of a reliable and powerful walking excavator which delivers top performances even in difficult terrain, the Jansen MB-360° with petrol engine is the right choice. You can count on this impressive unit to successfully complete your construction and landscaping projects.

TECHNICAL DATA:

• 4 stroke engine, Briggs & Stratton, 10 HP, 306cc
• Fuel: regular petrol
• Starter: Electric and recoil starter
• Weight: approx. 570 kg
• Boom swing angle range: 360 degrees
• Digging depth: approx. 2.10 m
• Reach: approx. 2.70 m
• Dumping clearance: approx. 1.60 m
• Ripping force: approx. 550 kg
• Load capacity : approx. 250 kg
• Amount of hydraulic oil: approx. 18 L (HLP46)
• Total length: 4.2 m
• Width of supports: 2.0 m
• Width of grey main frame: 1.0 m
• minimum width in transport position: 1.9 m
• max. height: 2.6 m
• 20 cm included

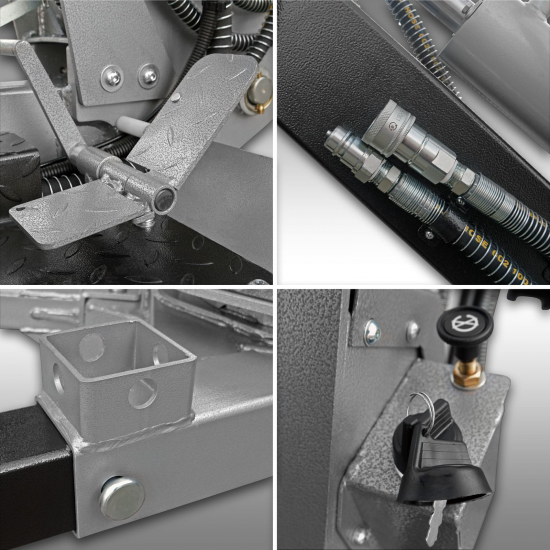

• AHK tow bar assembly removable
• Supports can be raised for transport
• Additional hydraulic circuit on excavator arm
• 4 double-acting hydraulic cylinders

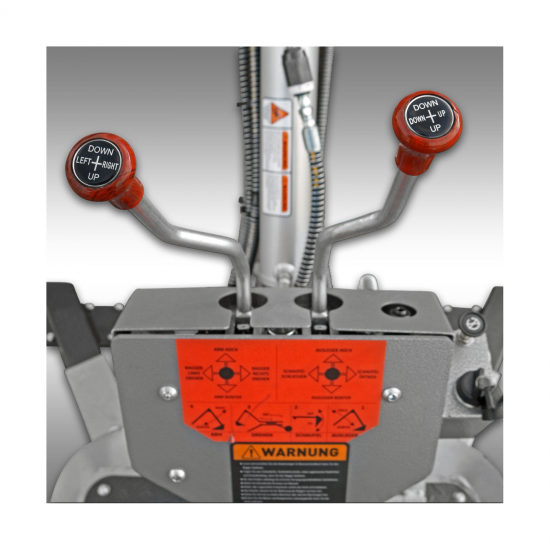

• Four-way control lever steering (2 control levers)
• Package dimensions: 225x100x85 cm (LxWxH)
• Shipping weight: approx. 671 kg
