JANSEN TRACKED DUMPER WITH HYDRAULIC SKIP & DUMPING SYSTEM WITH BUCKET RD-300proS 500kg

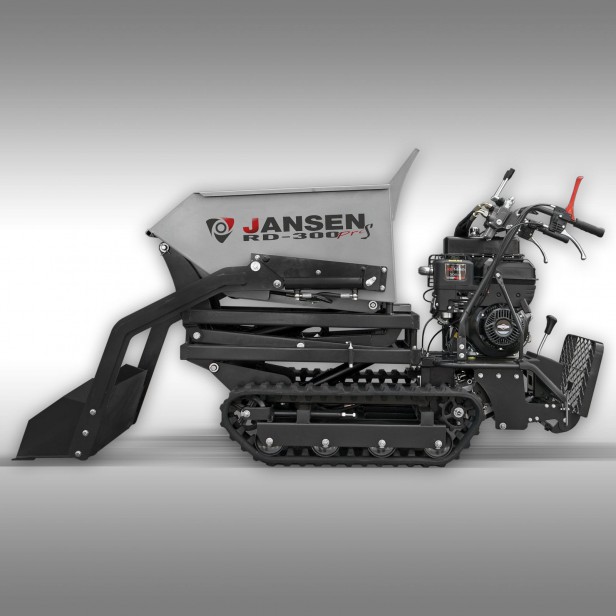

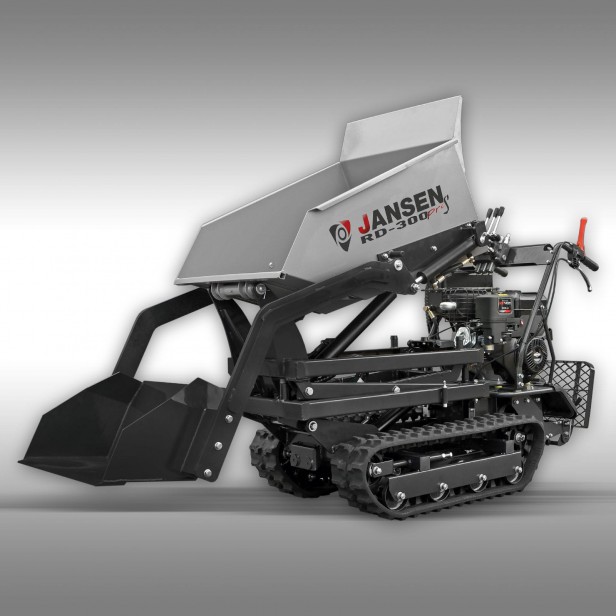

The Jansen RD-300proS track dumper is an extension of the Jansen RD-300pro and has a hydraulic self-loading function in addition to the hydraulic high-tipping system.

The dumper is also equipped with the new and improved 6:2 gearbox. It has a total of 6 forward gears and 2 reverse gears! The maximum forward speed is approx. 8 km/h, approx. 5 km/h in reverse. It is ideal for transporting sand, soil, gravel, rocks, etc. The track makes it easy to navigate rough, muddy, sandy terrain or inclines.

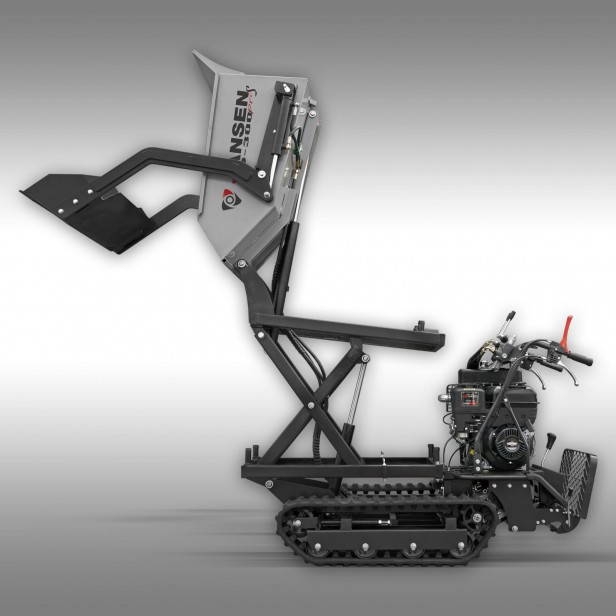

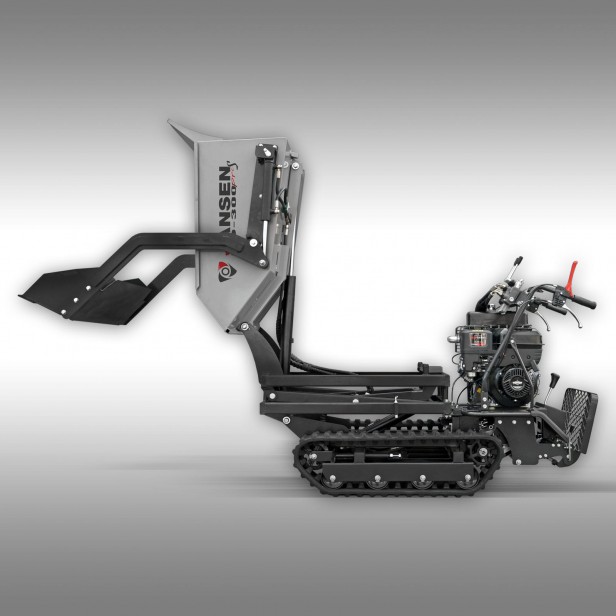

The Jansen RD-300proS is self-propelled and the skip features a hydraulic dumping mechanism. A powerful hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this. The high-tipping system with self-loader extends the working ranges. The hydraulic self-loading bucket makes it easy to load the bucket with a wide variety of materials up to a maximum weight of 500 kg directly into the container, trailer or onto the lorry. The Jansen RD-300proS features folding step for the operator to stand on the machine and ride along.

Unlike many other machines on the market, the ejection side of our Jansen RD-300proS skip is straight, not conical. Bulk material quickly becomes wedged when tipping out a skip with conical ejection. These features set our mini dumper apart from the competition! The lifting and lowering process only takes seconds. We deliver a reinforced version of the machine with a similarly strengthened skip (wall thickness 3 mm). The skip dimensions are 980x700x450 mm.

The track drive and ground clearance of approx. 120 mm makes this dumper suitable for particularly rough terrain. It can even manage inclines, however do bear in mind the centre of gravity is higher on this dumper!

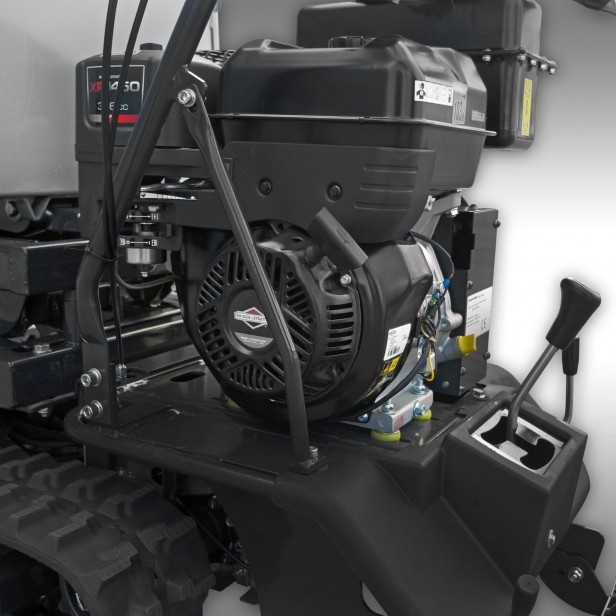

The Jansen RD-300proS comes standard with a high-quality 9 HP Briggs&Stratton petrol engine. These engines are tough, reliable and efficient.

Technical specifications:

• Briggs&Stratton XR1450 4-stroke engine, OHV, 9 HP, 306 cc
• Normal petrol
• Tank capacity: 5.3 litre
• Starter: Recoil starter
• Gearbox: 6:2 (6 forward gears, 2 reverse gears)
• Skip drive: hydraulic
• Skip with ejection system
• Self-loading shovel included
• Forward speed: max. 8 km/h
• Reverse speed: max. 5 km/h
• Ground clearance: approx. 120 mm
• Load capacity: max. 500 kg
• Total weight: approx. 400 kg
• Assembled dimensions: 237x89x124 cm (LxWxH, top edge skip up)
• Skip dimensions: 100x67x45 cm (LxWxH)
• shovel dimensions: 35x66x20 cm (LxBxH)
• Front edge height, skip down: 91 cm from ground
• Front edge height skip up: 153 cm from ground
• Ejection height: 142 cm
• Package dimensions: 185x80x139 cm (LxWxH)
• Weight including packaging: approx. 456 kg
