- Stock: Delivery 25-30 wo.days
- Model: 4114
THE NEW TRACK DUMPER JANSEN® RD-800PRO WITH HIGH TIPPING SYSTEM
Our crawler dumper Jansen® RD-800pro is an extension of the Jansen® RD-800 and features a hydraulic high tipping system. It's a flexible powerhouse and versatile in its applications. Thanks to the powerful hydraulic system, you'll have no trouble tipping heavy loads with a lifting capacity of 1000 kg. The Jansen® RD-800pro is a reliable assistant and performs valuable services, even in rough terrain, thanks to its tracks.
HIGHLIGHTS:
- Tipper with foldable and detachable side panels

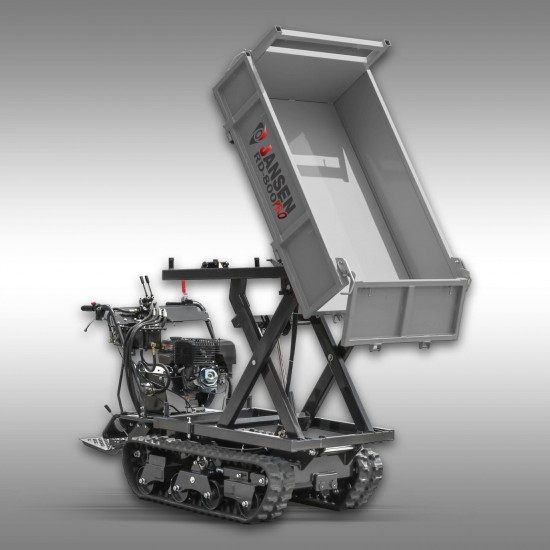

- Easy tipping through hydraulic tipping mechanism

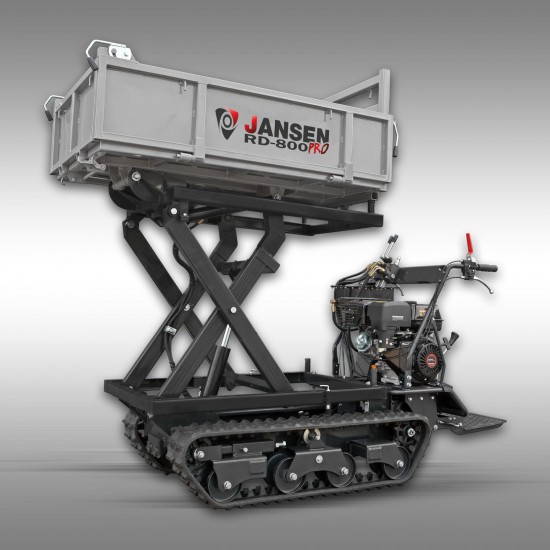

- Hydraulic high tipping system for even more possibilities
- Massive steel construction allows a payload of up to 1000 kg (recommended maximum is 800 kg)
- 6 forward and 2 reverse gears for optimal operating comfort
- Robust rubber tracks with track tensioner
- Steering via steering brakes
Foldable footboard The Jansen® RD-800pro is the ideal machine for landscaping, forestry, and as a pack mule for your construction work. The high tipping system extends the working areas, allowing you to load various materials weighing up to 1000 kg directly into the target container, trailer, or truck. The Jansen® RD-800pro is equipped with a skip with foldable side panels that can also be completely removed to use it as a transport platform. Even Euro pallets (1200x800 mm) comfortably fit on the skip - even when it's closed!
Handling is particularly easy and comfortable due to
the intuitive and easily accessible controls. The foldable footboard
also proves to be extremely helpful and comfortable on longer distances.
The crawler dumper Jansen® RD-800pro features a powerful Lon Cin gasoline engine with 13 HP, which can be started via recoil starter.
You can load up to 1000 kg; here's an overview of the payload and performance:
- Flat terrain: Load up to 1000 kg
- 17% or 10-degree slope: up to 650 kg
- 30% or 17-degree slope: up to 425 kg
Whether transporting building materials on the construction site or moving earth and gravel, our crawler dumper Jansen® RD-800pro with hydraulic high tipping system is your reliable partner for efficient and successful project execution. Increase your productivity and minimize labor with this powerful tool.
TECHNICAL SPECIFICATIONS:
- Engine type: 1 cylinder 4-stroke OHV engine, 13 HP LonCin
- Fuel type: Unleaded gasoline (approx. 4.5 l)
- Starting system: Recoil starter
- Structure: Skip with foldable side panels
- Inner dimensions of skip (closed): 1315x815x300 mm (LxWxH)
- Outer dimensions of skip (closed): 1390x880x300 mm (LxWxH)
- Flat skip (without side panels): 1320x820 mm (LxWxH)
- Height from front edge of skip (closed): 1070 mm (measured from the ground)
- Height from front edge of skip (open): 760 mm (measured from the ground)
- Height front edge, skip retracted: 1070 mm (measured from the ground)
- Height front edge, skip extended: 1810 mm (measured from the ground)
- Tipping height: 1080 mm (gate closed)
- Tipping height: 1200 mm (gate open)
- Drive system: Gear transmission
- Steering: Steering brakes
- Gears: 6 forward and 2 reverse gears
- Forward speed: max. 6 km/h
- Reverse speed: max. 3 km/h
- Brakes: Automatic safety brake
- Hydraulics: Hydraulic tipping, tiltable forwards, hydraulically height adjustable
- Load capacity: 1000 kg
- Ground clearance: 145 mm
- Dimensions assembled: 2300x900x1330 mm (LxWxH)
- Weight: 545 kg
- Packaging dimensions: 2200x1000x1450 mm (LxWxH)
- Shipping weight: 571 kg
