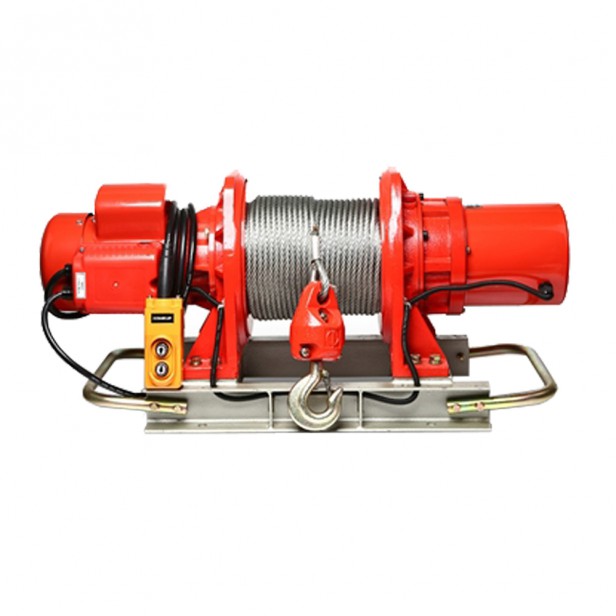

CWG-30151 Wire rope hoist 60m*9mm 500kg 380V

Professional wire rope winches CWG-10151 COME UP 220V that can operate in home power supplies making lifting large loads even easier. Great reliability and comfort for any necessary work.

• Electromagnetic spring-applied failsafe brake
• Heavy duty high efficiency ball bearing on all running surfaces
• Planetary gears for maximum mechanical efficiency
• Enclosed drum flange to prevent rope becoming trapped between drum and support castings
• Cast steel foot mountings
• Fabricated steel drum
• Supplied on steel base plate ready to mount
• Quiet running
• Emergency stop function switch is available upon request
• Low voltage control ass’y is available upon request

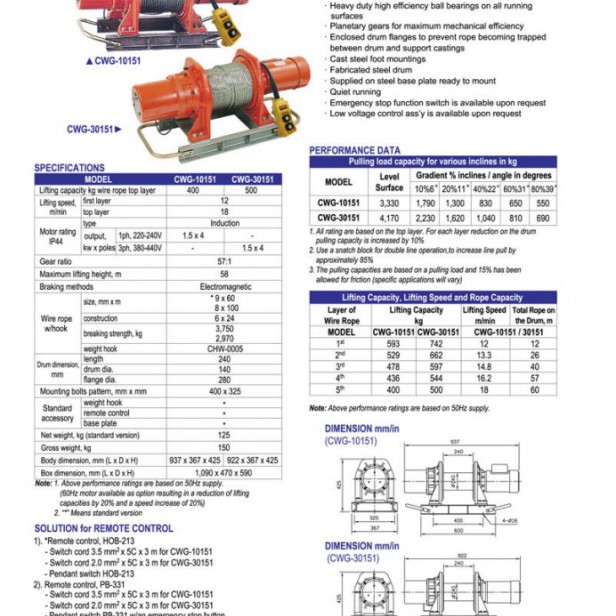

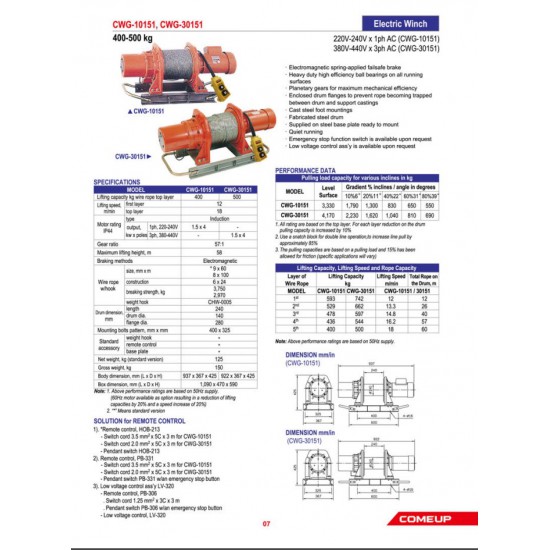

Specification/Part Numbers

• Lifting capacity: 500 kg at wire rope top layer
• Lifting speed: 12 – 18 m/min
• Power source: 3 phase, 380-440V
• Motor rating IP44: 1.5 kw x 4 poles induction brake motor
• Gear ratio: 57:1
• Maximum lifting height: 58 m
• Braking methods: Electromagnetic
• Wire rope: 9 mm x 60 m
• Drum length: 240 mm
• Drum dia.: 140 mm
• Drum flange dia.: 280 mm
• Mounting bolts pattern: 400 mm x 325 mm
• Net weight, kg (standard version) : 125 kg
• Gross weight : 150 kg

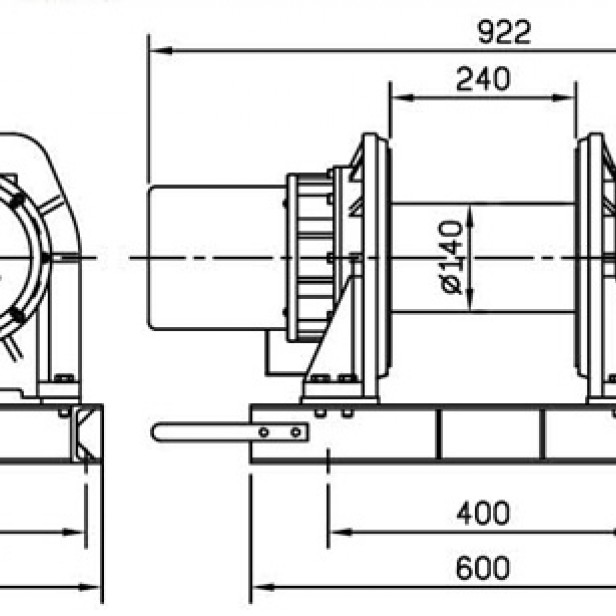

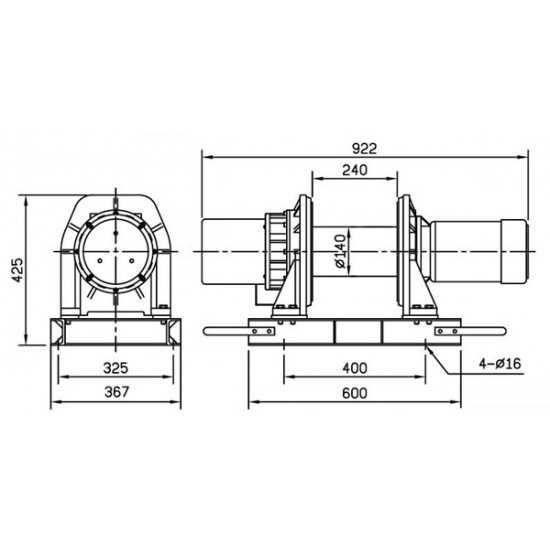

• Body dimension, (L x D x H) : 922 x 367 x 425 mm
• Box dimension, (L x D x H) : 1,090 x 470 x 590 mm

Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Lifting Capacity, Lifting Speed and Rope Capacity:

Note:.Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

Note:
1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%
3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning
The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum

  Operation Manual
